XR2204D - 14V Step-up DC/DC Converter

Datasheet Summary

Description

The XR2204D is a high frequency, high efficiency DC to DC converter with an integrated 4A, 0.1Ω power switch capable of providing an output voltage up to 14V.

The fixed 1.2MHz allows the use of small external inductions and capacitors and provides fast transient response.

Features

  • 2.3V to 6V input voltage Rangel Efficiency up to 96% 14V Boost converter with 4A switch current z 1.2Mhz fixed Switching Frequency z Integrated soft-start z Thermal Shutdown z Under voltage Lockout z ESD 8KV Pass( HBM ) z 8-Pin SOP-PP Package z z z.

📥 Download Datasheet

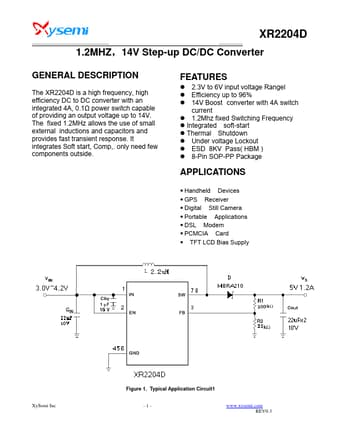

Datasheet preview – XR2204D

Datasheet Details

Part number XR2204D
Manufacturer XySemi
File Size 401.55 KB
Description 14V Step-up DC/DC Converter
Datasheet download datasheet XR2204D Datasheet
Additional preview pages of the XR2204D datasheet.

📁 Similar Datasheet

  • XR2204 - High Voltage High Current Darlington Transistor Arrays (Exar)
  • XR2201 - High Voltage High Current Darlington Transistor Arrays (Exar)
  • XR2202 - High Voltage High Current Darlington Transistor Arrays (Exar)
  • XR2203 - High Voltage High Current Darlington Transistor Arrays (Exar)
  • XR2206 - Monolithic Function Generator (Exar Corporation)
  • XR2207 - Voltage-Controlled Oscillator (Exar Corporation)
  • XR2208 - OPERATIONAL MULTIPLIER (Exar Corporation)
  • XR2209 - Voltage-Controlled Oscillator (Exar Corporation)
  • XR2211 - FSK Demodulator/ Tone Decoder (Exar Corporation)
  • XR2212 - Precision Phase-Locked Loop (Exar Corporation)
Other Datasheets by XySemi
  • XR2204 - 26V Step-up DC/DC Converter
  • XR2204P - 26V Step-up DC/DC Converter
  • XR2201 - 26V Step-up DC/DC Converter
  • XR2203 - 26V Step-up DC/DC Converter
  • XR2203E - 14V Step-up DC/DC Converter
  • XR2682 - 12W Output Step-up DC/DC Converter
  • XR2981 - 24W Output Step-up DC/DC Converter

Full PDF Text Transcription

Click to expand full text
XR2204D _____________________________ _________ 1.2MHZ，14V Step-up DC/DC Converter GENERAL DESCRIPTION The XR2204D is a high frequency, high efficiency DC to DC converter with an integrated 4A, 0.1Ω power switch capable of providing an output voltage up to 14V. The fixed 1.2MHz allows the use of small external inductions and capacitors and provides fast transient response. It integrates Soft start, Comp,. only need few components outside. FEATURES 2.3V to 6V input voltage Rangel Efficiency up to 96% 14V Boost converter with 4A switch current z 1.
