XBL6042-SM - One Cell Lithium-ion/Polymer Battery Protection IC

Product Overview

📥 Download Datasheet

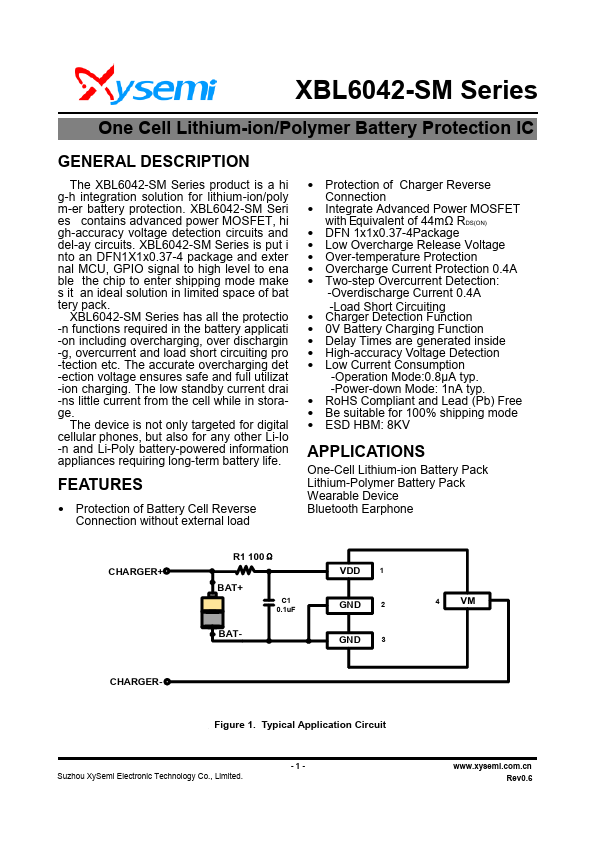

XBL6042-SM One Cell Lithium-ion/Polymer Battery Protection IC by XySemi - Datasheet Preview — Datasheet preview – XBL6042-SM

Datasheet Details

Part number	XBL6042-SM
Manufacturer	XySemi
File Size	0.96 MB
Description	One Cell Lithium-ion/Polymer Battery Protection IC
Datasheet	XBL6042-SM Datasheet

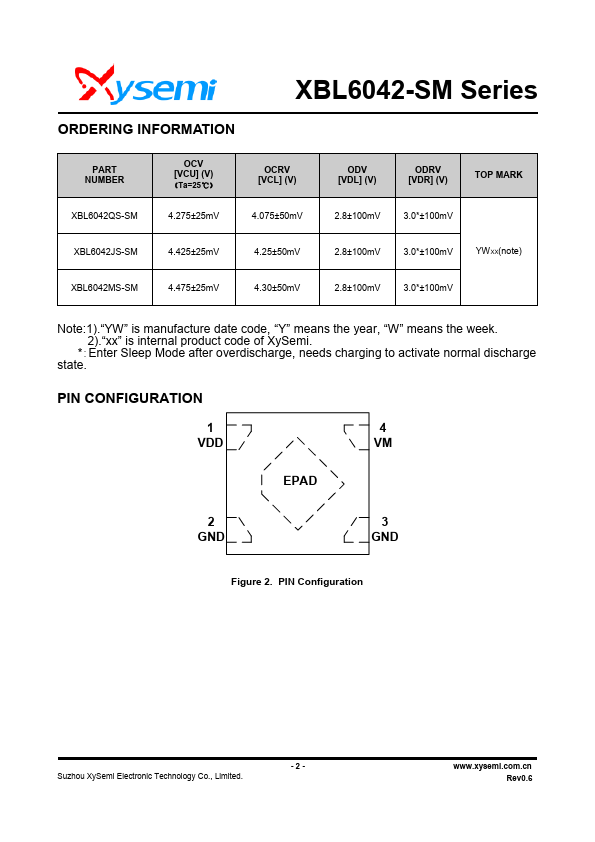

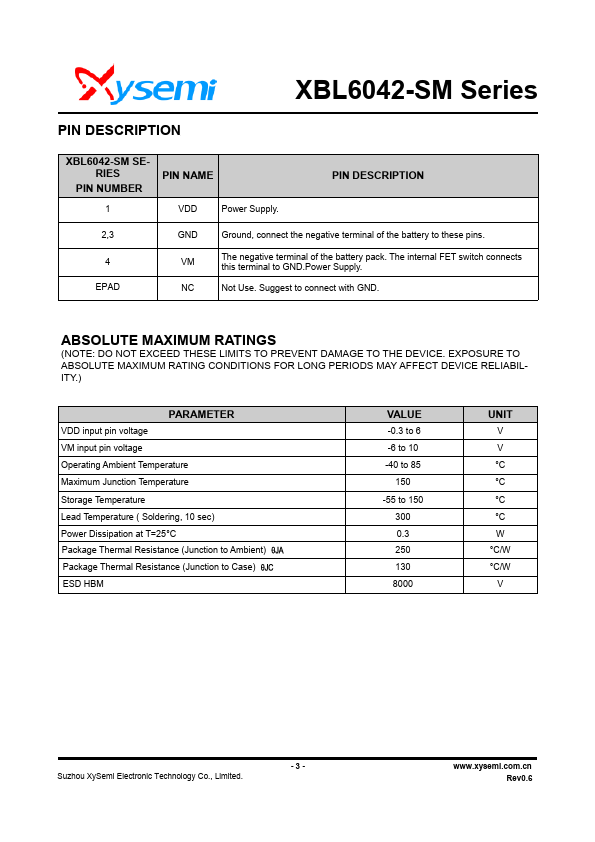

Additional preview pages of the XBL6042-SM datasheet.

Product details

Description

The XBL6042-SM Series product is a hi g-h integration solution for lithium-ion/poly m-er battery protection.

Features

Protection of Battery Cell Reverse Connection without external load.
Protection of Charger Reverse Connection.
Integrate Advanced Power MOSFET with Equivalent of 44mΩ RDS(ON).
DFN 1x1x0.37-4Package.
Low Overcharge Release Voltage.
Over-temperature Protection.
Overcharge Current Protection 0.4A.
Two-step Overcurrent Detection: -Overdischarge Current 0.4A -Load Short Circuiting.
Charger Detection Function.
0V Battery Charging Function.
Delay.
