XB6096J2, XB6096 - One Cell Lithium-ion/Polymer Battery Protection IC

XB6096J2 Description

XB6096 Series ______________________________________ ____________________________________________________________________ ___________ _ One Cell Lithi.
The XB6096 Series product is a high integration solution for lithiumion/polymer battery protection.

XB6096J2 Features

* Protection of Charger Reverse Connection
* Protection of Battery Cell Reverse Connection
* Integrate Advanced Power MOSFET with Equivalent of 26mΩ RDS(ON)
* Ultra-small DFN2X2-6 Package
* Only One External Capacitor Required
* Over-temperature Protection
* Overcharge Cu

XB6096J2 Applications

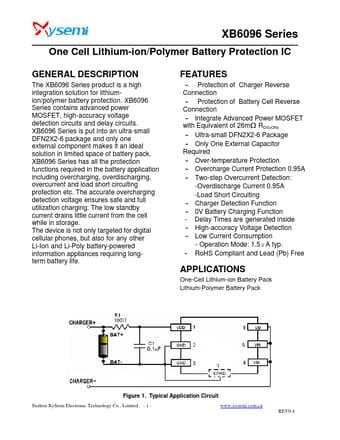

* One-Cell Lithium-ion Battery Pack Lithium-Polymer Battery Pack Figure 1. Typical Application Circuit Suzhou XySemi Electronic Technology Co. , Limited. - 1 - www. xysemi. com. cn REV0.4 XB6096 Series ______________________________________ ____________________________________________________ _______
