XB5556G - One Cell Lithium-ion/Polymer Battery Protection IC

Product Overview

📥 Download Datasheet

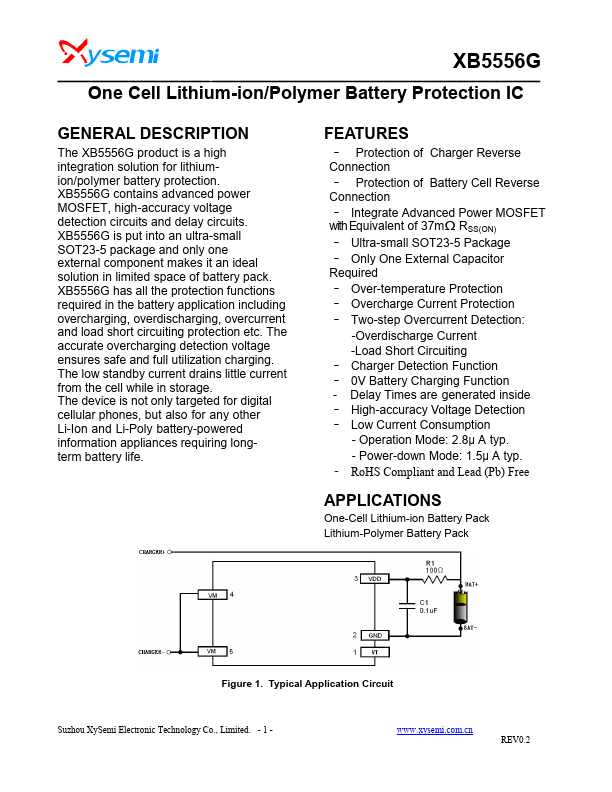

XB5556G One Cell Lithium-ion/Polymer Battery Protection IC by XySemi - Datasheet Preview — Datasheet preview – XB5556G

Datasheet Details

Part number	XB5556G
Manufacturer	XySemi
File Size	1.59 MB
Description	One Cell Lithium-ion/Polymer Battery Protection IC
Datasheet	XB5556G Datasheet

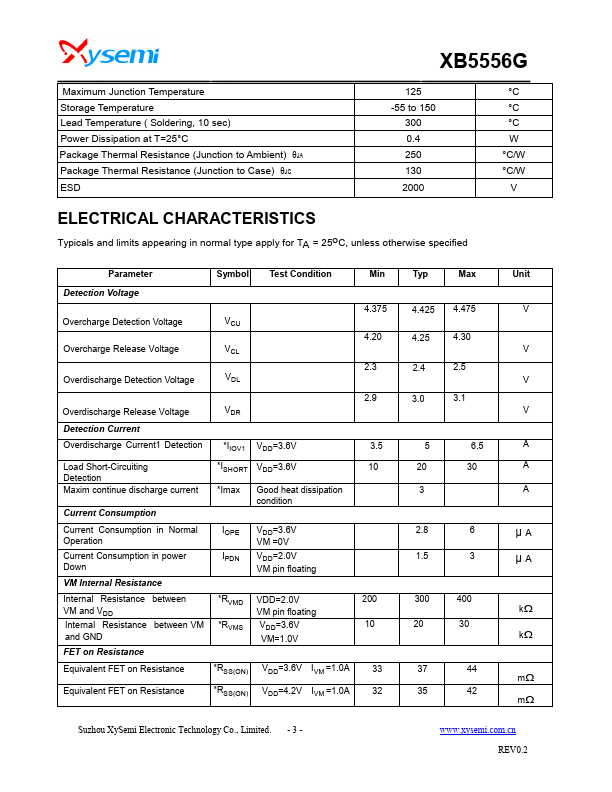

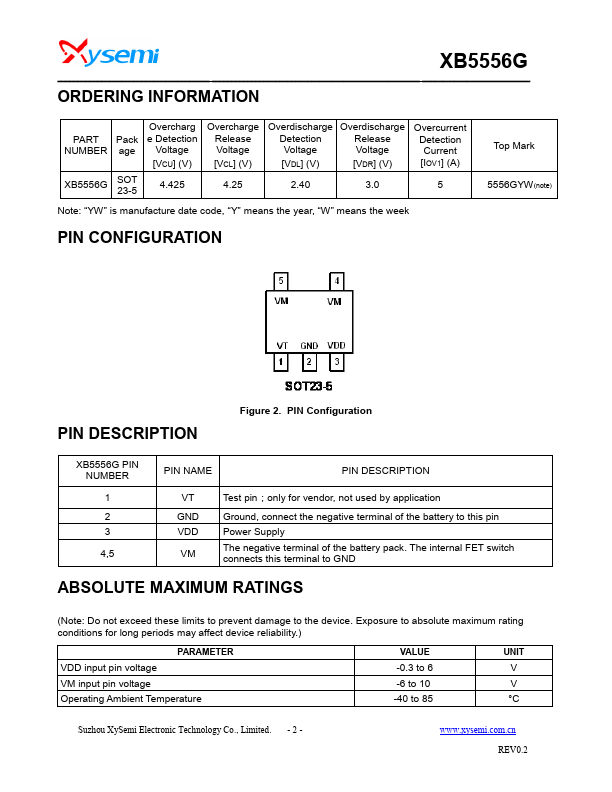

Additional preview pages of the XB5556G datasheet.

Product details

Description

The XB5556G product is a high integration solution for lithiumion/polymer battery protection.

Features

Protection of Charger Reverse Connection.
Protection of Battery Cell Reverse Connection.
Integrate Advanced Power MOSFET with Equivalent of 37mΩ RSS(ON).
Ultra-small SOT23-5 Package.
Only One External Capacitor Required.
Over-temperature Protection.
Overcharge Current Protection.
Two-step Overcurrent Detection: -Overdischarge Current -Load Short Circuiting.
Charger Detection Function.
0V Battery Charging Function - Delay Times are generated inside.
Hi.
