XNG100B24TC1S5 1200V/100A IGBT Half-Bridge Module

XNG100B24TC1S5 Description

Xiner XNG100B24TC1S5 1200V/100A IGBT Half-Bridge Module .

XNG100B24TC1S5 Features

* High frequency operation
* Low stray inductance
* High reliability and Power density

XNG100B24TC1S5 Applications

* Welding machine
* UPS
* Industry Inverter
* Motor Control Circuit Diagram 34mm Half-Bridge Module Vces=1200v Ic=100A@Tc=100℃ Package Outlines （Unit：mm） Shenzhen Invsemi Co. , Ltd Xiner XNG100B24TC1S5 IGBT Absolute Max Ratings Symbol VCES IC ICRM Ptotal VGES Symbol VCE(sat) VG

📥 Download Datasheet

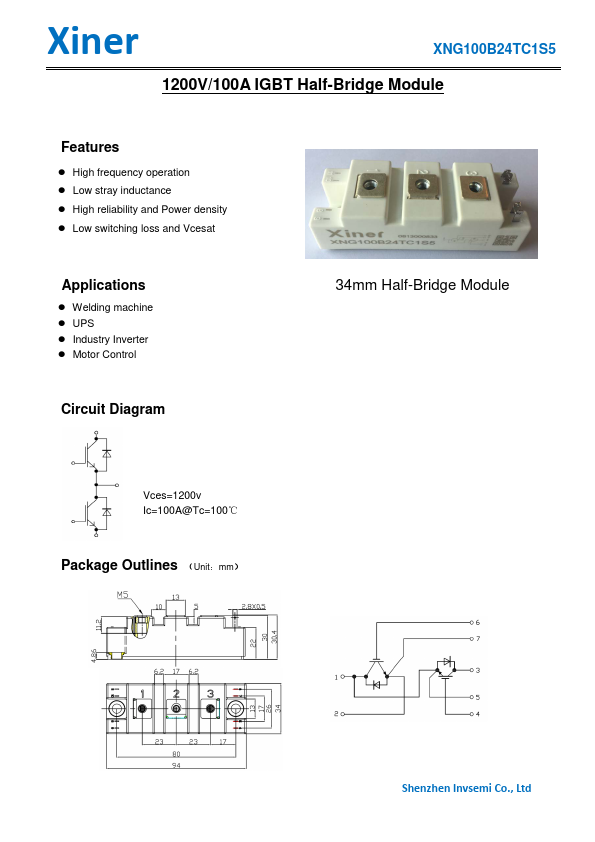

Preview of XNG100B24TC1S5 PDF

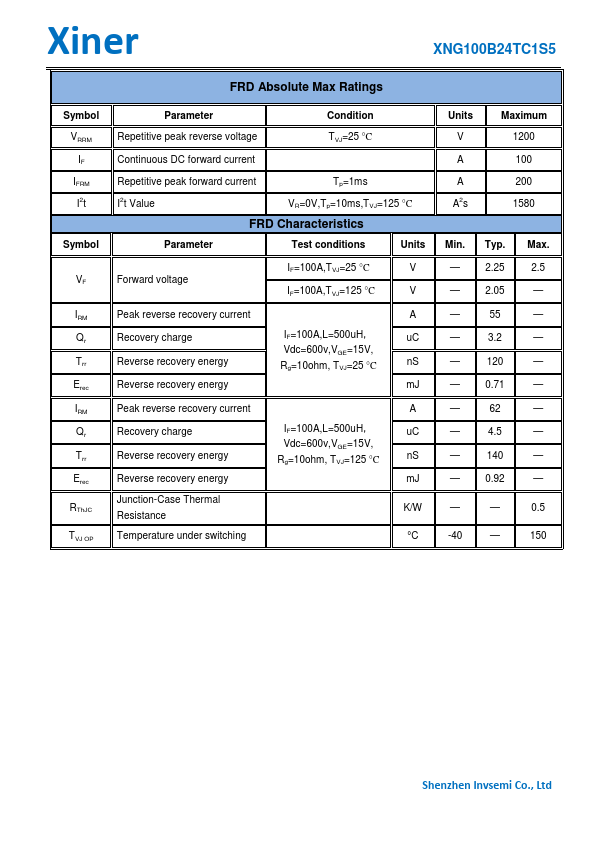

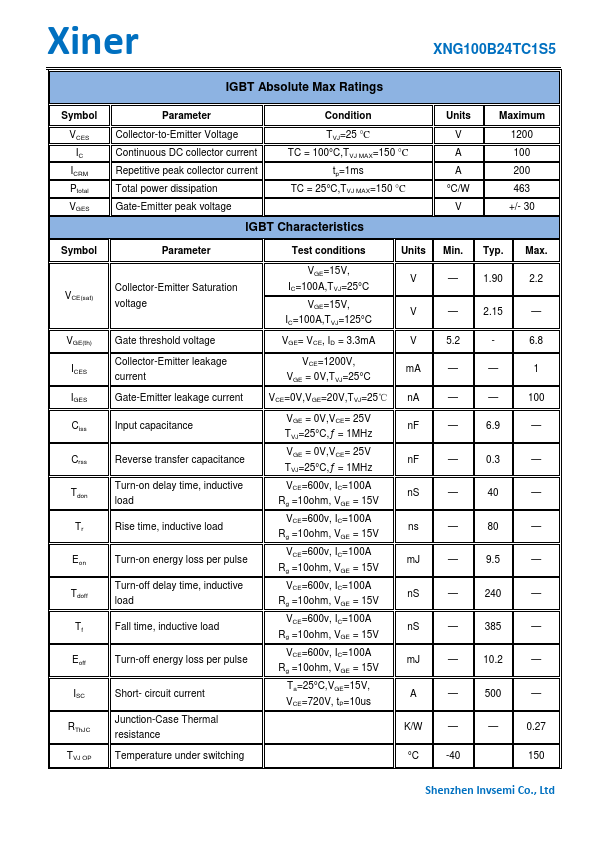

datasheet Preview Page 2 datasheet Preview Page 3
