XCF08P, XCF01S - Platform Flash In-System Programmable Configuration PROMs

Xilinx

📥 Download Datasheet

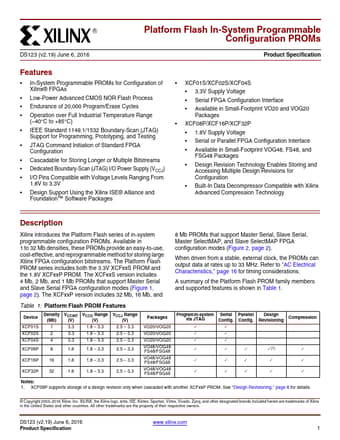

XCF08P Datasheet Preview — This datasheet PDF includes multiple part numbers: XCF08P, XCF01S. Please refer to the document for exact specifications by model.

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	XCF08P, XCF01S
Manufacturer	Xilinx
File Size	461.39 KB
Description	Platform Flash In-System Programmable Configuration PROMs
Datasheet	XCF01S_Xilinx.pdf
Note	This datasheet PDF includes multiple part numbers: XCF08P, XCF01S. Please refer to the document for exact specifications by model.

XCF08P Product details

Features

In-System Programmable PROMs for Configuration of Xilinx® FPGAs.
Low-Power Advanced CMOS NOR Flash Process.
Endurance of 20,000 Program/Erase Cycles.
Operation over Full Industrial Temperature Range (.
40°C to +85°C).
IEEE Standard 1149.1/1532 Boundary-Scan (JTAG) Support for Programming, Prototyping, and Testing.
JTAG Command Initiation of Standard FPGA Configuration.
Cascadable for Storing Longer or Multiple Bitstreams.
