XC18V00 - In-System Programmable Configuration PROMs

Xilinx

📥 Download Datasheet

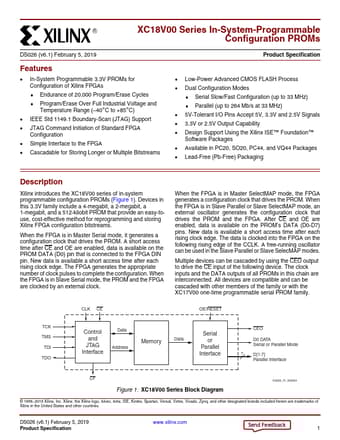

XC18V00 Datasheet Preview — Preview of XC18V00 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	XC18V00
Manufacturer	Xilinx
File Size	322.30 KB
Description	In-System Programmable Configuration PROMs
Datasheet	XC18V00_Xilinx.pdf

XC18V00 Product details

Description

Xilinx introduces the XC18V00 series of in-system programmable configuration PROMs (Figure 1).

Features

In-System Programmable 3.3V PROMs for Configuration of Xilinx FPGAs.
Endurance of 20,000 Program/Erase Cycles.
Program/Erase Over Full Industrial Voltage and Temperature Range (.
40°C to +85°C).
IEEE Std 1149.1 Boundary-Scan (JTAG) Support.
JTAG Command Initiation of Standard FPGA Configuration.
Simple Interface to the FPGA.
Cascadable for Storing Longer or Multiple Bitstreams Product Specification.
Low-Power Advanc.
