X1243 - Real Time Clock/Calendar/Alarm with EEPROM

Xicor

📥 Download Datasheet

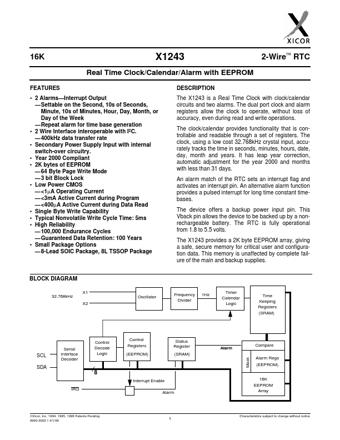

X1243 Datasheet Preview — Preview of X1243 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	X1243
Manufacturer	Xicor
File Size	90.74 KB
Description	Real Time Clock/Calendar/Alarm with EEPROM
Datasheet	X1243_XicorInc..pdf

X1243 Product details

Description

2-Wire™ RTC

Features

2 Alarms.
Interrupt Output.
Settable on the Second, 10s of Seconds, Minute, 10s of Minutes, Hour, Day, Month, or Day of the Week.
Repeat alarm for time base generation.
2 Wire Interface interoperable with I2C.
400kHz data transfer rate.
Secondary Power Supply Input with internal switch-over circuitry.
Year 2000 Compliant.
2K bytes of EEPROM.
64 Byte Page Write Mode.
3 bit Block Lock.
Low Power.
