XPT2231 Zero Drift Op-amp

XPT2231 Description

.
The XPTEK XPT2231/2/4 low-power chopper stabilized operational amplifiers provide input offset voltage correction for very low offset and offset drift.

XPT2231 Features

* LOW OFFSET VOLTAGE: 10 μV (Max)
* ZERO DRIFT: 0.008 µV/°C
* 0.1Hz to 10Hz Noise: 1.1 µVPP
* Low Supply Current: 34µA per Amplifier
* Bandwidth: 350 kHz
* Slew Rate: 0.16 V/μs
* High Gain, 130 dB High CMRR and PSRR
* Rail-to-rail Input and Output Swing

XPT2231 Applications

* Transducer Amplifier
* Bidirectional Current Sense
* DC Offset Correction
* Temperature Measurement
* Remote Located Sensors
* Battery-Powered Instruments

📥 Download Datasheet

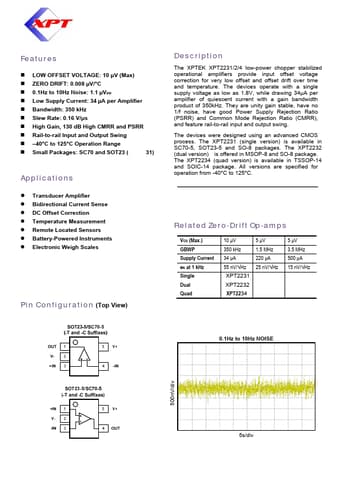

Preview of XPT2231 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
XPT2231
Manufacturer
XPTEK
File Size
391.25 KB
Datasheet
XPT2231-XPTEK.pdf
Description
Zero Drift Op-amp
