STR05S12 - Switching Regulator

Download the STR05S12 datasheet PDF (STR05S1V5 included). The manufacturer datasheet provides complete specifications, pinout details, electrical characteristics, and typical applications for switching regulator.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (STR05S1V5-XPPower.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number STR05S12
Manufacturer XP Power
File Size 354.79 KB
Description Switching Regulator
Datasheet download datasheet STR05S12 Datasheet

📁 Similar Datasheet

  • STR0603-102Y - SURFACE-MOUNT TOROIDAL COMMON MODE CHOKES (SHAANXI)
  • STR0603-151Y - SURFACE-MOUNT TOROIDAL COMMON MODE CHOKES (SHAANXI)
  • STR0603-221Y - SURFACE-MOUNT TOROIDAL COMMON MODE CHOKES (SHAANXI)
  • STR0603-501Y - SURFACE-MOUNT TOROIDAL COMMON MODE CHOKES (SHAANXI)
  • STR-4A60S - Sensitive Gate Triacs (SemiWell Semiconductor)
  • STR-4A60S - Sensitive Gate Triacs (TGS)
  • STR-50115 - STR50115 (ETC)
  • STR-50330 - Hybrid IC Voltage Regulator (Sanken electric)
  • STR-53041 - Hybrid IC Voltage Regulator (Sanken electric)
  • STR-54041 - Hybrid IC Voltage Regulator Module (Sanken electric)
Other Datasheets by XP Power

Full PDF Text Transcription

Click to expand full text

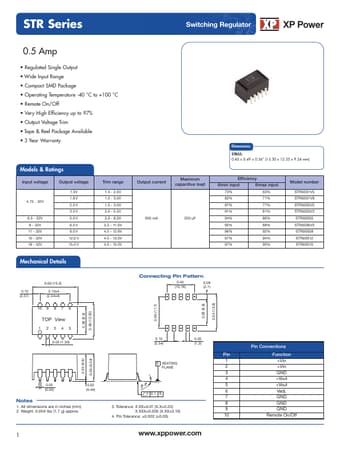

STR Series Switching Regulator 0.5 Amp xxx Series• Regulated Single Output • Wide Input Range • Compact SMD Package • Operating Temperature -40 °C to +100 °C • Remote On/Off • Very High Efficiency up to 97% • Output Voltage Trim • Tape & Reel Package Available • 3 Year Warranty Models & Ratings Input voltage 4.75 - 32V 6.5 - 32V 8 - 32V 11 - 32V 15 - 32V 18 - 32V Output voltage 1.5V 1.8 V 2.5 V 3.3 V 5.0 V 6.5 V 9.0 V 12.0 V 15.0 V Trim range 1.4 - 2.5V 1.5 - 3.0V 1.5 - 3.0V 3.0 - 5.5V 3.0 - 8.0V 3.3 - 11.0V 4.5 - 12.6V 4.5 - 13.5V 4.5 - 15.5V Dimensions: STR05: 0.60 x 0.49 x 0.36” (15.30 x 12.35 x 9.
