ITW1212S - DC-DC Converter

This page provides the datasheet information for the ITW1212S, a member of the ITW0505SA DC-DC Converter family.

📥 Download Datasheet

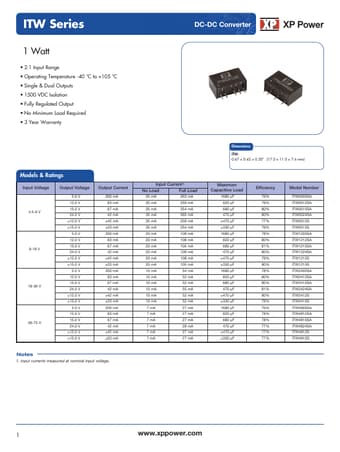

Datasheet preview – ITW1212S

Datasheet Details

Part number ITW1212S
Manufacturer XP Power
File Size 303.58 KB
Description DC-DC Converter
Datasheet download datasheet ITW1212S Datasheet
Additional preview pages of the ITW1212S datasheet.

📁 Similar Datasheet

Other Datasheets by XP Power

Full PDF Text Transcription

Click to expand full text
ITW Series DC-DC Converter 1 Watt xxx Series• 2:1 Input Range • Operating Temperature 40 °C to +105 °C • Single & Dual Outputs • 1500 VDC Isolation • Fully Regulated Output • No Minimum Load Required • 3 Year Warranty Models & Ratings Input Voltage 4.5-9 V 9-18 V 18-36 V 36-75 V Output Voltage 5.0 V 12.0 V 15.0 V 24.0 V ±12.0 V ±15.0 V 5.0 V 12.0 V 15.0 V 24.0 V ±12.0 V ±15.0 V 5.0 V 12.0 V 15.0 V 24.0 V ±12.0 V ±15.0 V 5.0 V 12.0 V 15.0 V 24.0 V ±12.0 V ±15.0 V Output Current 200 mA 83 mA 67 mA 42 mA ±42 mA ±33 mA 200 mA 83 mA 67 mA 42 mA ±42 mA ±33 mA 200 mA 83 mA 67 mA 42 mA ±42 mA ±33 mA 200 mA 83 mA 67 mA 42 mA ±42 mA ±33 mA Notes 1. Input currents measured at nominal input voltage.
