DC DC

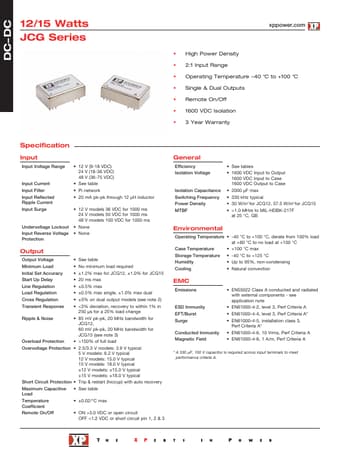

12/15 Watts JCG Series
xppower.com
• High Power Density • 2:1 Input Range • Operating Temperature 40 °C to +100 °C • Single & Dual Outputs • Remote On/Off • 1600 VDC Isolation • 3 Year Warranty
Specification
Input
Input Voltage Range
Input Current Input Filter Input Reflected Ripple Current Input Surge
Undervoltage Lockout Input Reverse Voltage Protection
• 12 V (9-18 VDC) 24 V (18-36 VDC) 48 V (36-75 VDC)
• See table • Pi network • 20 mA pk-pk through 12 µH inductor
• 12 V models 36 VDC for 1000 ms 24 V models 50 VDC for 1000 ms 48 V models 100 VDC for 1000 ms
• None • None
Output
Output Voltage
• See table
Minimum Load
• No minimum load required
Initial Set Accuracy • ±1.2% max for JCG12, ±1.0% for JCG15
Start Up Delay
• 20 ms max
Line Regulation
• ±0.
