XR4953B - Dual P-Ch 20V Fast Switching MOSFETs

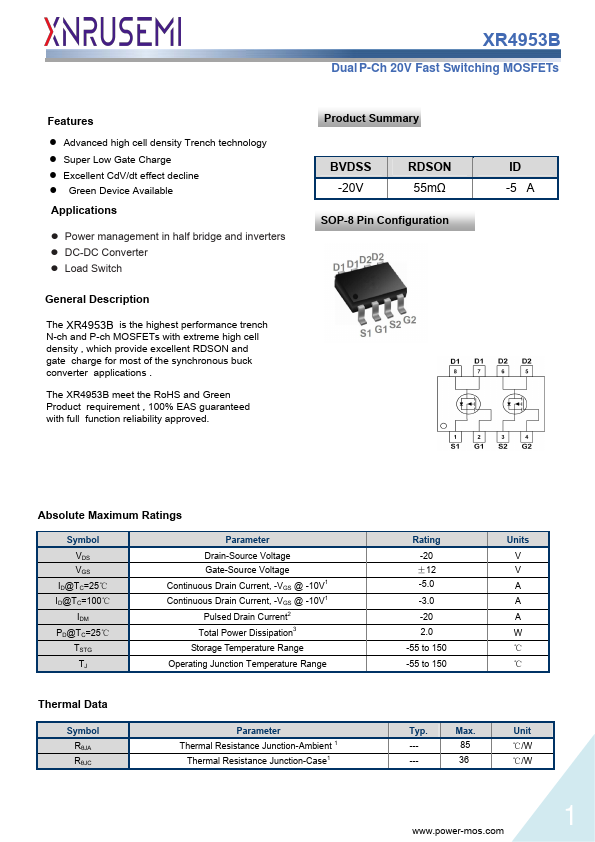

XR4953B Datasheet Preview — Preview of XR4953B PDF

Datasheet Details

Part number	XR4953B
Manufacturer	XNRUSEMI
File Size	722.54 KB
Description	Dual P-Ch 20V Fast Switching MOSFETs
Datasheet	XR4953B-XNRUSEMI.pdf

XR4953B Product details

Description

The XR4953B is the highest performance trench N-ch and P-ch MOSFETs with extreme high cell density , which provide excellent RDSON and gate charge for most of the synchronous buck converter applications .The XR4953B meet the RoHS and Green Product requirement , 100% EAS guaranteed with full function reliability approved.Product Summary BVDSS -20V RDSON 55mΩ SOP-8 Pin Configuration ID -5 A Absolute Maximum Ratings Symbol VDS VGS ID@TC=25℃ ID@TC=100℃ IDM PD@TC=25℃ TSTG TJ Parameter Drain

Features

z Advanced high cell density Trench technology z Super Low Gate Charge z Excellent CdV/dt effect decline z Green Device Available.
