XL9023 - 4A 120KHz 45V Synchronous Buck DC to DC Converter

Name: XL9023
SKU: XL9023-1538008

XLSEMI

📥 Download Datasheet

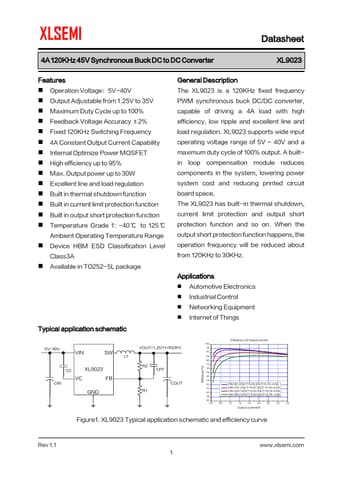

XL9023 Datasheet Preview — Preview of XL9023 PDF

Datasheet Details

Part number	XL9023
Manufacturer	XLSEMI
File Size	753.45 KB
Description	4A 120KHz 45V Synchronous Buck DC to DC Converter
Datasheet	XL9023-XLSEMI.pdf

XL9023 Product details

Description

The XL9023 is a 120KHz fixed frequency PWM synchronous buck DC/DC converter, capable of driving a 4A load with high efficiency, low ripple and excellent line and load regulation.

Features

Operation Voltage：5V~40V.
Output Adjustable from 1.25V to 35V.
Maximum Duty Cycle up to 100%.
Feedback Voltage Accuracy ±2%.
Fixed 120KHz Switching Frequency.
4A Constant Output Current Capability.
Internal Optimize Power MOSFET.
High efficiency up to 95%.
Max. Output power up to 30W.
Excellent line and load regulation.
Built in thermal shutdown function.
Built in current limit protection function.
Built in output short protection.
