DBF36A - SINGLE PHASE 3AMP SURFACE MOUNT GLASS PASSIVATED BRIDGE RECTIFIER

Download the DBF36A datasheet PDF. This datasheet also covers the DBF31A variant, as both devices belong to the same single phase 3amp surface mount glass passivated bridge rectifier family and are provided as variant models within a single manufacturer datasheet.

Features

  • Glass Passivated Die Construction.
  • Low leakage.
  • Ideal for printed circuit board.
  • Surge overload rating-110A peak.
  • Designed for Surface Mount.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (DBF31A-XINNUO.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number DBF36A
Manufacturer XINNUO
File Size 413.16 KB
Description SINGLE PHASE 3AMP SURFACE MOUNT GLASS PASSIVATED BRIDGE RECTIFIER
Datasheet download datasheet DBF36A Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
DBF36 3A Bridge Rectifiers CITC
DBF31 3A Bridge Rectifiers CITC
DBF310 3A Bridge Rectifiers CITC
DBF310 3A SURFACE MOUNT BRIDGE RECTIFIER DIODES
DBF32 3A Bridge Rectifiers CITC

Other Datasheets by XINNUO

Part Number Description
DBF310A SINGLE PHASE 3AMP SURFACE MOUNT GLASS PASSIVATED BRIDGE RECTIFIER
DBF31A SINGLE PHASE 3AMP SURFACE MOUNT GLASS PASSIVATED BRIDGE RECTIFIER
DBF32A SINGLE PHASE 3AMP SURFACE MOUNT GLASS PASSIVATED BRIDGE RECTIFIER
DBF34A SINGLE PHASE 3AMP SURFACE MOUNT GLASS PASSIVATED BRIDGE RECTIFIER
DBF38A SINGLE PHASE 3AMP SURFACE MOUNT GLASS PASSIVATED BRIDGE RECTIFIER

Full PDF Text Transcription

Click to expand full text

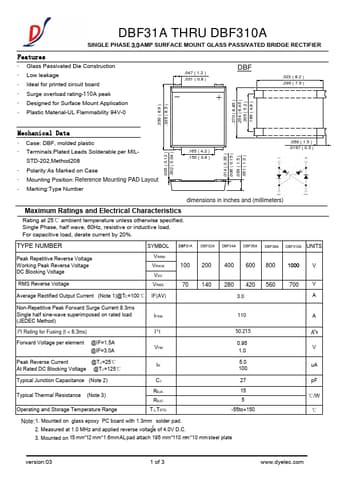

DBF31A THRU DBF310A SINGLE PHASE 3.0 AMP SURFACE MOUNT GLASS PASSIVATED BRIDGE RECTIFIER Features · Glass Passivated Die Construction · Low leakage · Ideal for printed circuit board · Surge overload rating-110A peak · Designed for Surface Mount Application · Plastic Material-UL Flammability 94V-0 .047 ( 1.2 ) .031 ( 0.8 ) - + DBF .323 ( 8.2 ) .295 ( 7.5 ) .270 ( 6.85 ) .254 ( 6.45 ) .205 ( 5.2 ) .189 ( 4.8 ) .350 ( 8.9 ) .335 ( 8.5 ) Mechanical Data · Case: DBF, molded plastic · Terminals:Plated Leads Solderable per MIL- STD-202,Method208 · Polarity:As Marked on Case · Mounting Position: Reference Mounting PAD Layout · Marking:Type Number .005 ( 0.12 ) .002 ( 0.04 ) .165 ( 4.2 ) .150 ( 3.8 ) .014 ( 0.35 ) .006 ( 0.15 ) .059 ( 1.5 ) .051 ( 1.3 ) .059 ( 1.5 ) .0197 ( 0.
