ABS10U - SINGLE PHASE 1.0AMP SURFACE MOUNT GLASS PASSIVATEDBRIDGERECTIFIER

Download the ABS10U datasheet PDF. This datasheet also covers the ABS2U variant, as both devices belong to the same single phase 1.0amp surface mount glass passivatedbridgerectifier family and are provided as variant models within a single manufacturer datasheet.

Features

  • Glass passivated die construction.
  • Low forward voltage drop.
  • High current capability.
  • High surge current capability.
  • Designed for surface mount.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (ABS2U-XINNUO.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number ABS10U
Manufacturer XINNUO
File Size 288.57 KB
Description SINGLE PHASE 1.0AMP SURFACE MOUNT GLASS PASSIVATEDBRIDGERECTIFIER
Datasheet download datasheet ABS10U Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
ABS10U 1.0A SCHOTTKY BRIDGE RECTIFIER UTC
ABS10U SINGLE PHASE 1.0AMP SURFACE MOUNT GLASS PASSIVATED BRIDGERECTIFIER SMC Diode
ABS10U 1Amp Single Phase Surface Mount Glass Passivated Bridge Rectifier SeCoS
ABS10UH SINGLE PHASE 1.0AMP SURFACE MOUNT GLASS PASSIVATED BRIDGERECTIFIER SMC Diode
ABS10 SINGLE-PHASE BRIDGE RECTIFIER Sunmate

Other Datasheets by XINNUO

Part Number Description
ABS2U SINGLE PHASE 1.0AMP SURFACE MOUNT GLASS PASSIVATEDBRIDGERECTIFIER
ABS4U SINGLE PHASE 1.0AMP SURFACE MOUNT GLASS PASSIVATEDBRIDGERECTIFIER
ABS6U SINGLE PHASE 1.0AMP SURFACE MOUNT GLASS PASSIVATEDBRIDGERECTIFIER
ABS8U SINGLE PHASE 1.0AMP SURFACE MOUNT GLASS PASSIVATEDBRIDGERECTIFIER

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

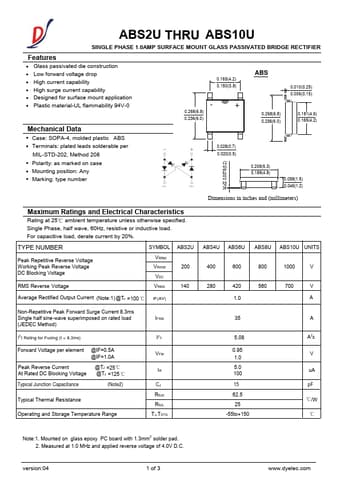

ABS2U THRU ABS10U SINGLE PHASE 1.0AMP SURFACE MOUNT GLASS PASSIVATED BRIDGE RECTIFIER Features · Glass passivated die construction · Low forward voltage drop · High current capability · High surge current capability · Designed for surface mount application · Plastic material-UL flammability 94V-0 Mechanical Data 0.165(4.2) 0.150(3.8) - + 0.268(6.8) 0.236(6.0) ABS 0.010(0.25) 0.006(0.15) 0.268(6.8) 0.236(6.0) 0.181(4.6) 0.165(4.2) · Case: SOPA-4, molded plastic ABS · Terminals: plated leads solderable per MIL-STD-202, Method 208 0.028(0.7) 0.020(0.5) · Polarity: as marked on case · Mounting position: Any · Marking: type number 0.209(5.3) 0.189(4.8) 0.058(1.5) 0.046(1.2) MAX 0.0078(0.
