XA214-G4C - medium-power FET

Product Overview

📥 Download Datasheet

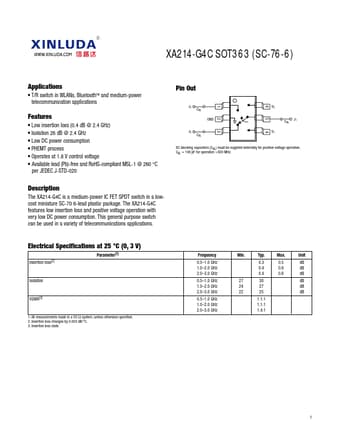

XA214-G4C medium-power FET by XINLUDA - Datasheet Preview — Datasheet preview – XA214-G4C

Datasheet Details

Part number	XA214-G4C
Manufacturer	XINLUDA
File Size	201.03 KB
Description	medium-power FET
Datasheet	XA214-G4C Datasheet
Additional preview pages of the XA214-G4C datasheet.

Product details

Description

The XA214-G4C is a medium-power IC FET SPDT switch in a lowcost miniature SC-70 6-lead plastic package.

Features

Low insertion loss (0.4 dB @ 2.4 GHz).
Isolation 26 dB @ 2.4 GHz.
Low DC power consumption.
PHEMT process.
Operates at 1.8 V control voltage.
Available lead (Pb)-free and RoHS-compliant MSL-1 @ 260 °C per JEDEC J-STD-020 Pin Out J3 CBL GND J2 CBL 65 4 12 3 V2 CBL J1 V1 DC blocking capacitors (CBL) must be supplied externally for positive voltage operation. CBL = 100 pF for operation >500 MHz.
