FH3204G - N-Channel Enhancement Mode Power MOSFET

Name: FH3204G
SKU: FH3204G-1589361

📥 Download Datasheet

FH3204G Datasheet Preview — Preview of FH3204G PDF

Datasheet Details

Part number	FH3204G
Manufacturer	XIN FEI HONG
File Size	2.48 MB
Description	N-Channel Enhancement Mode Power MOSFET
Datasheet	FH3204G-XINFEIHONG.pdf

FH3204G Product details

Description

The FH3204G uses advanced Shielded Gate trench technology and design to provide excellent RDS(ON) with low gate charge. Motor drivers Power switching application DC/DC Converters In Computing Isolated DC/DC Converters In Telecom and Industrlal General

Features

VDSS 40V ID 120A RDS(ON) MAX 1.6mΩ @ VGS=10V.
High density cell design for ultra low Rdson.
Fully characterized avalanche voltage and current.
Good stability and uniformity with high EAS.
Excellent package for good heat dissipation 1 G FH3204.

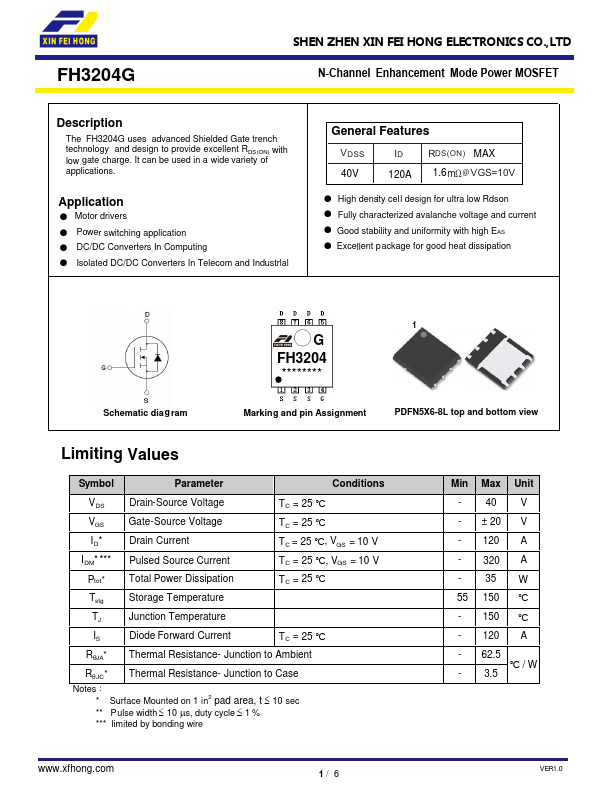

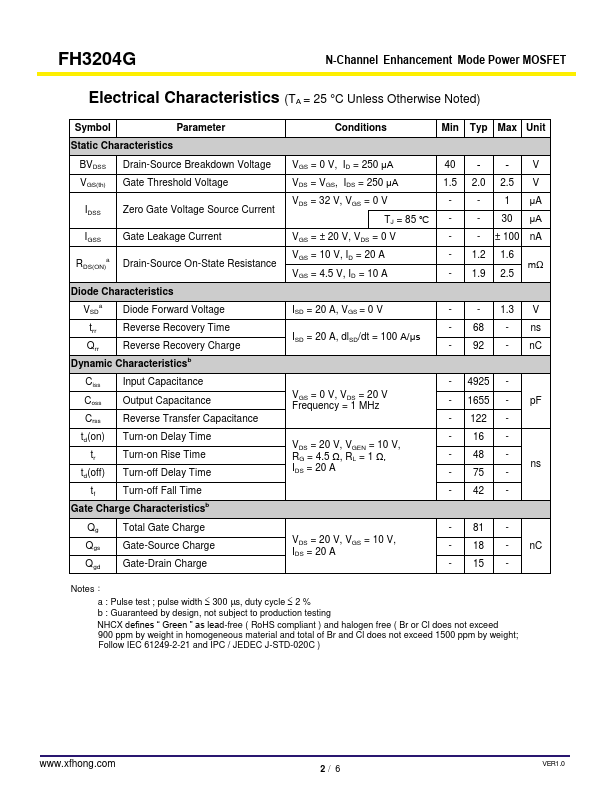

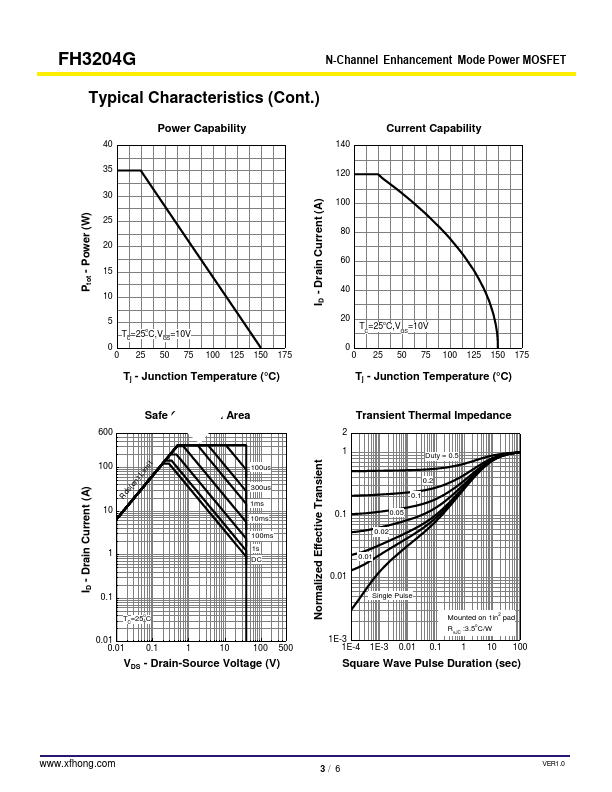

Schematic diagram Marking and pin Assignment PDFN5X6-8L top and bottom view Limiting Values Symbol Parameter Conditions VDS VGS ID.
IDM.
,.
Ptot.
Tstg Drain.
