YD7231 - TV Vertical Power Output Circuit

YD7231 Description

YOUDA INTEGRATED CIRCUIT YD7231 TV VERTICAL POWER OUTPUT CIRCUIT¡ª .
YD7231 The YD7231 is a monolithic integrated circuit designed as a TV vertical power output circuit in small screen sized televisions.

YD7231 Features

* Operating voltage 1.8 To 15V
* Low quiescent current
* High power capability
* Low crossover distortion
* Soft clipping BLOCK DIAGRAM 8 7 6 5 AMPLIFIER 1 2 3 4 . WuXi YouDa Electronics Co. , Ltd Add: No.5 Xijin Road, National Hi-Tech Industrial Development Zone, Wuxi Jian

📥 Download Datasheet

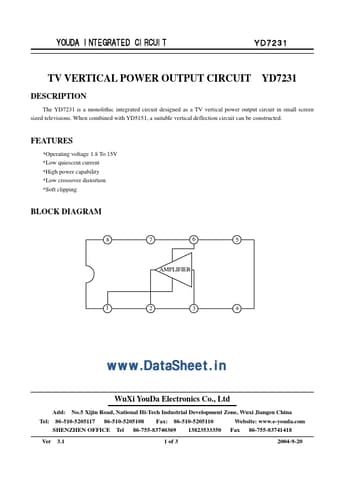

Preview of YD7231 PDF
