SJS2300A - 20V N-Channel Trench Power MOSFET

The SJS2300A by Wuxi Shangjia is a 20V N-Channel Trench Power MOSFET. Below is the official datasheet preview.

📥 Download Datasheet

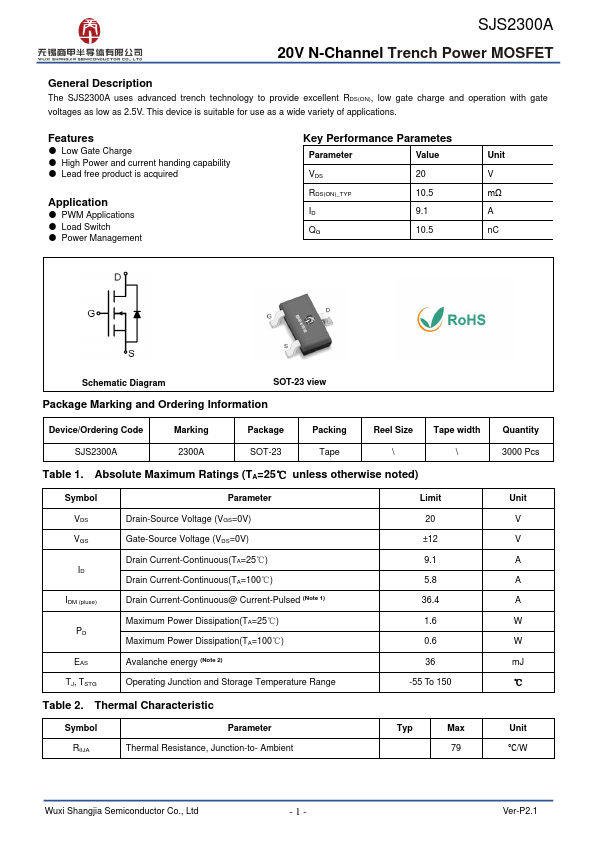

Official preview page of the SJS2300A 20V N-Channel Trench Power MOSFET datasheet (Wuxi Shangjia).

Datasheet Details

Part number SJS2300A
Manufacturer Wuxi Shangjia
File Size 608.81 KB
Description 20V N-Channel Trench Power MOSFET
Datasheet download datasheet SJS2300A-WuxiShangjia.pdf

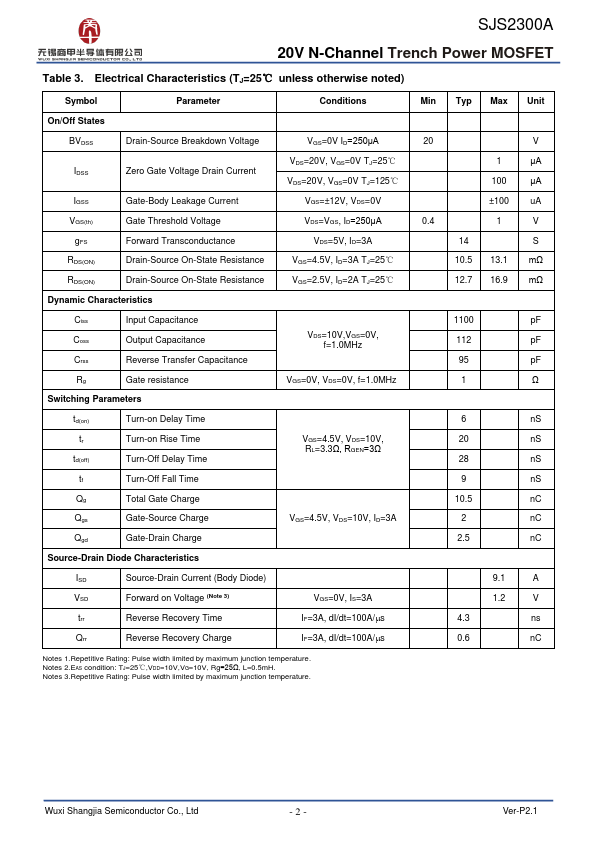

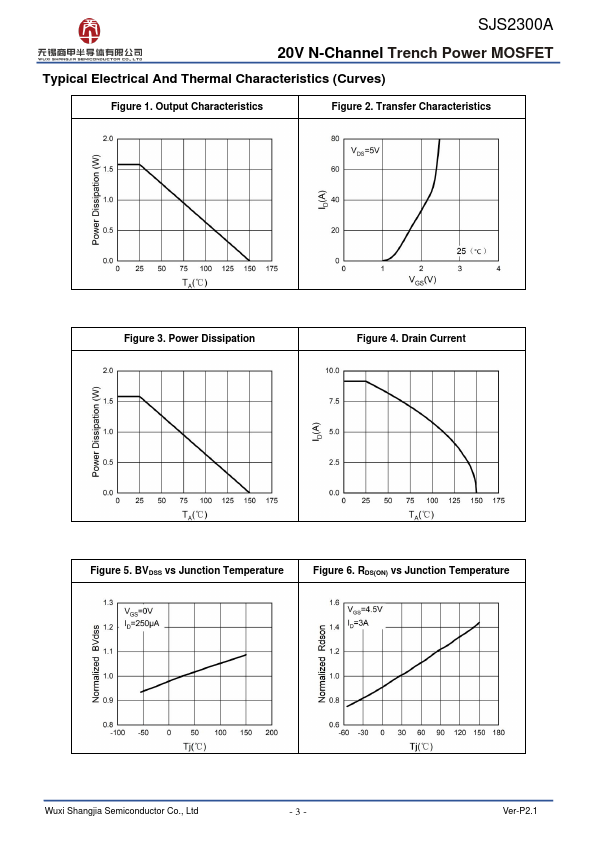

Additional preview pages of the SJS2300A datasheet.

SJS2300A Product details

Description

The SJS2300A uses advanced trench technology to provide excellent RDS(ON), low gate charge and operation with gate voltages as low as 2.5V.

Features
