WS2812D-F8-15mA - Intelligent control LED

Product Overview

Worldsemi

Datasheet Details

Part number	WS2812D-F8-15mA
Manufacturer	Worldsemi
File Size	332.87 KB
Description	Intelligent control LED
Datasheet	WS2812D-F8-15mA Datasheet

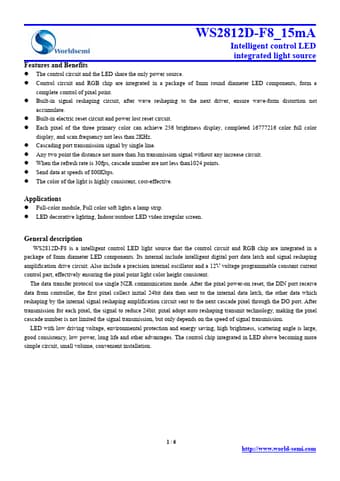

Additional preview pages of the WS2812D-F8-15mA datasheet.

Product details

Description

WS2812D-F8 is a intelligent control LED light source that the control circuit and RGB chip are integrated in a package of 8mm diameter LED components.

Features

The control circuit and the LED share the only power source.
Control circuit and RGB chip are integrated in a package of 8mm round diameter LED components, form a complete control of pixel point.
Built-in signal reshaping circuit, after wave reshaping to the next driver, ensure wave-form distortion not accumulate.
Built-in electric reset circuit and power lost reset circuit.
Each pixel of the three primary color can achieve 256 brightness display, completed 16777216.
