WRMSB30M - Ultrasoft Recovery Bridge

Download the WRMSB30M datasheet PDF (WRMSB30J included). The manufacturer datasheet provides complete specifications, pinout details, electrical characteristics, and typical applications for ultrasoft recovery bridge.

Description

n 1 Input Pin（~） O 2 Input Pin（~） 3 Output Anode（+） e 4 Output Cathode（-） Designed For Surface Mount Application Benefits Case: MSB Terminals: Solderable Per MIL-STD-750 Reduced power loss and switching transistor Us Maximum Ratings and Electrical ch

Features

  • 2.
  • Glass Passivated Chip Junction 1.
  • Reverse Voltage - 1000 V 3.
  • Forward Current - A 4.
  • High Surge Current Capability y.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (WRMSB30J-WorldInternationLimited.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number WRMSB30M
Manufacturer World Internation Limited
File Size 1.11 MB
Description Ultrasoft Recovery Bridge
Datasheet download datasheet WRMSB30M Datasheet

📁 Similar Datasheet

  • WRM0102 - Resistors (TT electronics)
  • WRM0204 - Resistors (TT electronics)
  • WRM0207 - Resistors (TT electronics)
Other Datasheets by World Internation Limited

Full PDF Text Transcription

Click to expand full text

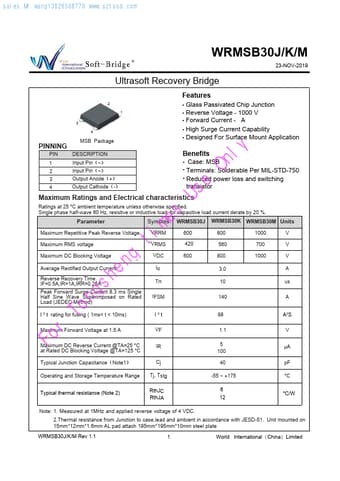

sales.Mr.wang13826508770 www.sztssd.com WRMSB30J/K/M 23-NOV-2019 Ultrasoft Recovery Bridge Features 2 • Glass Passivated Chip Junction 1 • Reverse Voltage - 1000 V 3 • Forward Current - A 4 • High Surge Current Capability y PINNING MSB Package l PIN DESCRIPTION n 1 Input Pin（~） O 2 Input Pin（~） 3 Output Anode（+） e 4 Output Cathode（-） • Designed For Surface Mount Application Benefits • Case: MSB • Terminals: Solderable Per MIL-STD-750 • Reduced power loss and switching transistor Us Maximum Ratings and Electrical characteristics Ratings at 25 °C ambient temperature unless otherwise specified. s Single phase half-wave 60 Hz, resistive or inductive load, for capacitive load current derate by 20 %.
