SZ1330A, SZ1110A-Won - 1.0W SURFACE MOUNT ZENER DIODE

Won-Top

📥 Download Datasheet

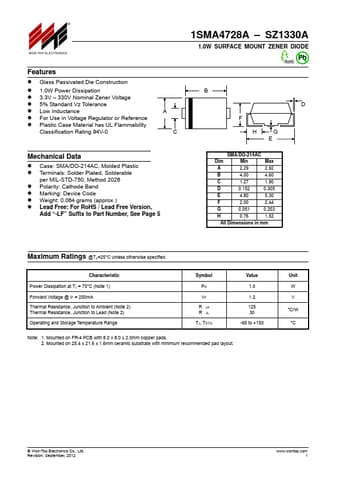

SZ1330A Datasheet Preview — This datasheet PDF includes multiple part numbers: SZ1330A, SZ1110A-Won. Please refer to the document for exact specifications by model.

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	SZ1330A, SZ1110A-Won
Manufacturer	Won-Top
File Size	88.19 KB
Description	1.0W SURFACE MOUNT ZENER DIODE
Datasheet	SZ1110A-Won-Top.pdf
Note	This datasheet PDF includes multiple part numbers: SZ1330A, SZ1110A-Won. Please refer to the document for exact specifications by model.

SZ1330A Product details

Features

Glass Passivated Die Construction.
1.0W Power Dissipation.
3.3V.
330V Nominal Zener Voltage.
5% Standard Vz Tolerance.
Low Inductance.
For Use in Voltage Regulator or Reference.
Plastic Case Material has UL Flammability Classification Rating 94V-0 A C Mechanical Data.
Case: SMA/DO-214AC, Molded Plastic.
Terminals: Solder Plated, Solderable per MIL-STD-750, Method 2026.
Polarity: Cathode Band.
Marking: Device Code.
Weight: 0.
