SA7.5, SA70-Won - 500W TRANSIENT VOLTAGE SUPPRESSOR

Won-Top Electronics

📥 Download Datasheet

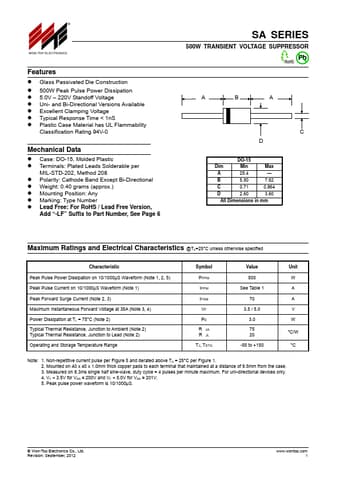

SA7.5 Datasheet Preview — This datasheet PDF includes multiple part numbers: SA7.5, SA70-Won. Please refer to the document for exact specifications by model.

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number: SA7.5, SA70-Won
Manufacturer: Won-Top Electronics
File Size: 92.16 KB
Datasheet: SA70-Won-TopElectronics.pdf
Description: 500W TRANSIENT VOLTAGE SUPPRESSOR
Note: This datasheet PDF includes multiple part numbers: SA7.5, SA70-Won.
Please refer to the document for exact specifications by model.

SA7.5 Product details

Features

Glass Passivated Die Construction.
500W Peak Pulse Power Dissipation.
5.0V.
220V Standoff Voltage.
Uni- and Bi-Directional Versions Available.
Excellent Clamping Voltage.
Typical Response Time < 1nS.
Plastic Case Material has UL Flammability Classification Rating 94V-0 Mechanical Data.
Case: DO-15, Molded Plastic.
Terminals: Plated Leads Solderable per MIL-STD-202, Method 208.
Polarity: Cathode Band Except Bi-Directional.
Weight: 0.
