MP1504, MP1500_Won - 15A BRIDGE RECTIFIER

Won-Top Electronics

The MP1504 by Won-Top Electronics is a 15A BRIDGE RECTIFIER. Below is the official datasheet preview.

📥 Download Datasheet

MP1504 15A BRIDGE RECTIFIER by Won-Top Electronics - Datasheet Preview — Official preview page of the MP1504 15A BRIDGE RECTIFIER datasheet (Won-Top Electronics).

Datasheet Details

Part number	MP1504, MP1500_Won
Manufacturer	Won-Top Electronics
File Size	39.99 KB
Description	15A BRIDGE RECTIFIER
Datasheet	MP1500_Won-TopElectronics.pdf
Note	This datasheet PDF includes multiple part numbers: MP1504, MP1500_Won. Please refer to the document for exact specifications by model.

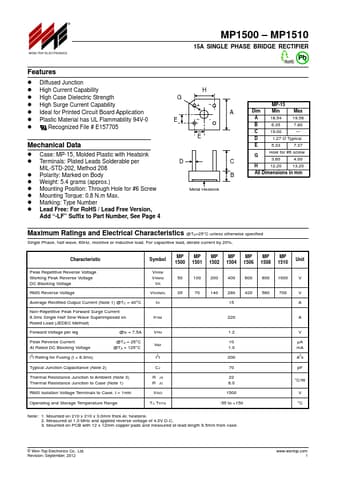

Additional preview pages of the MP1504 datasheet.

MP1504 Product details

Features

Diffused Junction.
High Current Capability.
High Case Dielectric Strength.
High Surge Current Capability.
Ideal for Printed Circuit Board.
