GBPC5000S - 50A GLASS PASSIVATED HIGH CURRENT SINGLE-PHASE BRIDGE RECTIFIER

Download the GBPC5000S datasheet PDF. This datasheet also covers the GBPC50S_Won variant, as both devices belong to the same 50a glass passivated high current single-phase bridge rectifier family and are provided as variant models within a single manufacturer datasheet.

Features

  • Glass Passivated Die Construction Low Forward Voltage Drop High Current Capability High Reliability High Surge Current Capability Designed for Saving Mounting Space Recognized File # E157705 A J KBPC-S Dim Min Max A 28.40 28.70 B 10.97 11.23 C.
  • 21.00 D.
  • 25.00 E 5.10.
  • G 1.20 Ø Typical H 3.05 3.60 J 5.08 Ø Nominal All Dimensions in mm - ~ ~ + Mechanical Data Case: KBPC-S, Molded Plastic with Heatsink Internally Mounted in the Bridge Encapsulation Terminals: Plated Lead.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (GBPC50S_Won-TopElectronics.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number GBPC5000S
Manufacturer Won-Top Electronics
File Size 95.16 KB
Description 50A GLASS PASSIVATED HIGH CURRENT SINGLE-PHASE BRIDGE RECTIFIER
Datasheet download datasheet GBPC5000S Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
GBPC5000 Bridge Rectifier Formosa MS
GBPC50005 Single-Phase 50A Glass Passivated Bridge Rectifier Sangdest Microelectronics
GBPC50005 Glass Passivated Bridge Rectifiers Eris
GBPC50005 SINGLE-PHASE BRIDGE RECTIFIER Suntan
GBPC50005 Glass Passivated Bridge Rectifiers Taiwan Semiconductor

Other Datasheets by Won-Top Electronics

Part Number Description
GBPC5000 50A GLASS PASSIVATED HIGH CURRENT SINGLE-PHASE BRIDGE RECTIFIER
GBPC5000W 50A GLASS PASSIVATED HIGH CURRENT SINGLE-PHASE BRIDGE RECTIFIER
GBPC5001 50A GLASS PASSIVATED HIGH CURRENT SINGLE-PHASE BRIDGE RECTIFIER
GBPC5001S 50A GLASS PASSIVATED HIGH CURRENT SINGLE-PHASE BRIDGE RECTIFIER
GBPC5001W 50A GLASS PASSIVATED HIGH CURRENT SINGLE-PHASE BRIDGE RECTIFIER

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

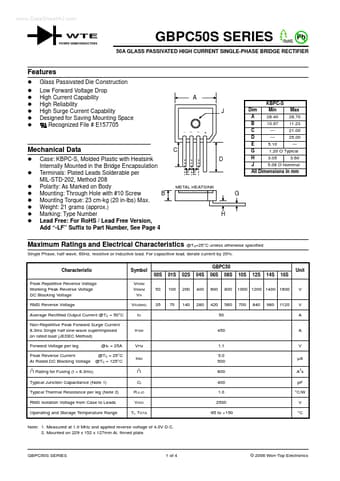

www.DataSheet4U.com WTE POWER SEMICONDUCTORS GBPC50S SERIES Pb 50A GLASS PASSIVATED HIGH CURRENT SINGLE-PHASE BRIDGE RECTIFIER Features Glass Passivated Die Construction Low Forward Voltage Drop High Current Capability High Reliability High Surge Current Capability Designed for Saving Mounting Space Recognized File # E157705 A J KBPC-S Dim Min Max A 28.40 28.70 B 10.97 11.23 C — 21.00 D — 25.00 E 5.10 — G 1.20 Ø Typical H 3.05 3.60 J 5.08 Ø Nominal All Dimensions in mm - ~ ~ + Mechanical Data Case: KBPC-S, Molded Plastic with Heatsink Internally Mounted in the Bridge Encapsulation Terminals: Plated Leads Solderable per MIL-STD-202, Method 208 Polarity: As Marked on Body Mounting: Through Hole with #10 Screw B Mounting Torque: 23 cm-kg (20 in-lbs) Max. Weight: 21 grams (approx.
