GBPC2516S - 25A GLASS PASSIVATED SINGLE-PHASE BRIDGE RECTIFIER

Download the GBPC2516S datasheet PDF. This datasheet also covers the GBPC25S_Won variant, as both devices belong to the same 25a glass passivated single-phase bridge rectifier family and are provided as variant models within a single manufacturer datasheet.

Key Features

  • Glass Passivated Die Construction Low Forward Voltage Drop High Current Capability High Reliability High Surge Current Capability Designed for Saving Mounting Space Recognized File # E157705 A J KBPC-S Dim Min Max A 28.40 28.70 B 10.97 11.23 C.
  • 21.00 D.
  • 25.00 E 5.10.
  • G 1.20 Ø Typical H 3.05 3.60 J 5.08 Ø Nominal All Dimensions in mm - ~ ~ + Mechanical Data Case: KBPC-S, Molded Plastic with Heatsink Internally Mounted in the Bridge Encapsulation Terminals: Plated Lead.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (GBPC25S_Won-TopElectronics.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number GBPC2516S
Manufacturer Won-Top Electronics
File Size 98.85 KB
Description 25A GLASS PASSIVATED SINGLE-PHASE BRIDGE RECTIFIER
Datasheet download datasheet GBPC2516S Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
GBPC2516PS 25A GLASS PASSIVATED SINGLE PHASE BRIDGE RECTIFIER WON-TOP
GBPC2510 Glass Passivated Single-Phase Bridge Rectifier Vishay
GBPC2510 Glass Passivated Bridge Rectifiers HY
GBPC2510 SINGLE-PHASE GLASS PASSIVATED BRIDGE RECTIFIER DC COMPONENTS
GBPC2510 Glass Passivated Bridge Rectifiers Eris

Other Datasheets by Won-Top Electronics

Part Number Description
GBPC2516 25A GLASS PASSIVATED SINGLE-PHASE BRIDGE RECTIFIER
GBPC2516W 25A GLASS PASSIVATED SINGLE-PHASE BRIDGE RECTIFIER
GBPC2510 25A GLASS PASSIVATED SINGLE-PHASE BRIDGE RECTIFIER
GBPC2510S 25A GLASS PASSIVATED SINGLE-PHASE BRIDGE RECTIFIER
GBPC2510W 25A GLASS PASSIVATED SINGLE-PHASE BRIDGE RECTIFIER

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

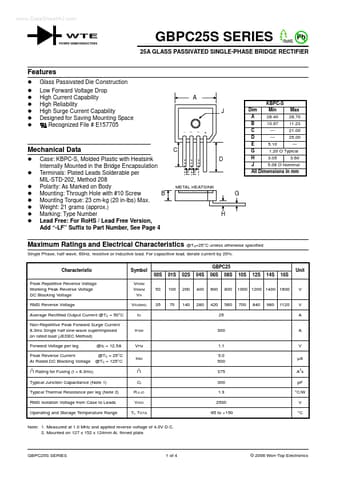

www.DataSheet4U.com WTE POWER SEMICONDUCTORS GBPC25S SERIES Pb 25A GLASS PASSIVATED SINGLE-PHASE BRIDGE RECTIFIER Features Glass Passivated Die Construction Low Forward Voltage Drop High Current Capability High Reliability High Surge Current Capability Designed for Saving Mounting Space Recognized File # E157705 A J KBPC-S Dim Min Max A 28.40 28.70 B 10.97 11.23 C — 21.00 D — 25.00 E 5.10 — G 1.20 Ø Typical H 3.05 3.60 J 5.08 Ø Nominal All Dimensions in mm - ~ ~ + Mechanical Data Case: KBPC-S, Molded Plastic with Heatsink Internally Mounted in the Bridge Encapsulation Terminals: Plated Leads Solderable per MIL-STD-202, Method 208 Polarity: As Marked on Body Mounting: Through Hole with #10 Screw B Mounting Torque: 23 cm-kg (20 in-lbs) Max. Weight: 21 grams (approx.
