DD3524 - 35A GLASS PASSIVATED AVALANCHE DISH TYPE PRESS-FIT DIODE

Product Overview

Won-Top Electronics

📥 Download Datasheet

DD3524 35A GLASS PASSIVATED AVALANCHE DISH TYPE PRESS-FIT DIODE by Won-Top Electronics - Datasheet Preview — Datasheet preview – DD3524

Datasheet Details

Part number	DD3524
Manufacturer	Won-Top Electronics
File Size	27.31 KB
Description	35A GLASS PASSIVATED AVALANCHE DISH TYPE PRESS-FIT DIODE
Datasheet	DD3524 Datasheet
Note	This datasheet PDF includes multiple part numbers: DD3524, DD3520-Won. Please refer to the document for exact specifications by model.

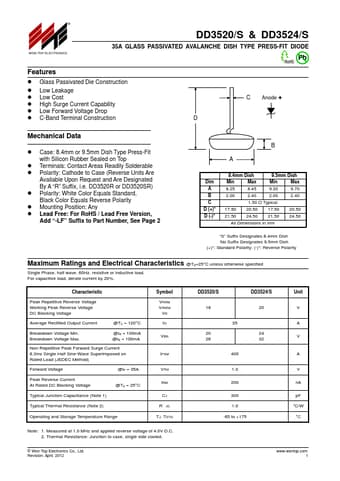

Additional preview pages of the DD3524 datasheet.

Product details

Features

Glass Passivated Die Construction.
Low Leakage.
Low Cost.
High Surge Current Capability.
Low Forward Voltage Drop.
C-Band Terminal Construction C Anode + D Mechanical Data.
Case: 8.4mm or 9.5mm Dish Type Press-Fit with Silicon Rubber Sealed on Top.
Terminals: Contact Areas Readily Solderable.
Polarity: Cathode to Case (Reverse Units Are Available Upon Request and Are Designated By A “R” Suffix, i. e. DD3520R or DD3520SR).
Polarity: White Color.
