1.5KE43C, 1.5KE6.8-Won - 1500W TRANSIENT VOLTAGE SUPPRESSOR

Name: 1.5KE43C
SKU: 1.5KE43C-1158266

Won-Top Electronics

The 1.5KE43C by Won-Top Electronics is a 1500W TRANSIENT VOLTAGE SUPPRESSOR. Below is the official datasheet preview.

Datasheet Details

Part number	1.5KE43C, 1.5KE6.8-Won
Manufacturer	Won-Top Electronics
File Size	97.02 KB
Description	1500W TRANSIENT VOLTAGE SUPPRESSOR
Datasheet	1.5KE6.8-Won-TopElectronics.pdf
Note	This datasheet PDF includes multiple part numbers: 1.5KE43C, 1.5KE6.8-Won. Please refer to the document for exact specifications by model.

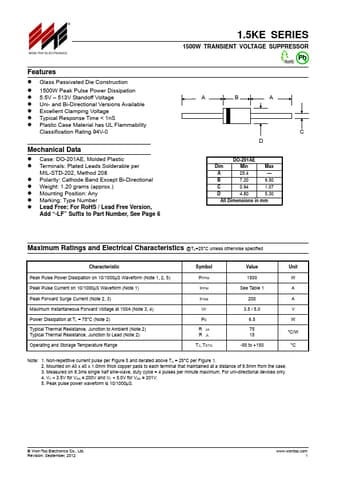

Additional preview pages of the 1.5KE43C datasheet.

Glass Passivated Die Construction.
1500W Peak Pulse Power Dissipation.
5.5V.
513V Standoff Voltage.
Uni- and Bi-Directional Versions Available.
Excellent Clamping Voltage.
Typical Response Time < 1nS.
Plastic Case Material has UL Flammability Classification Rating 94V-0 Mechanical Data.
Case: DO-201AE, Molded Plastic.
Terminals: Plated Leads Solderable per MIL-STD-202, Method 208.
Polarity: Cathode Band Except Bi-Directional.
Weigh.
