WAS175M12BM3T, WAS175M12BM3 Silicon Carbide Half-Bridge Module

WAS175M12BM3T Description

WAS175M12BM3, 5 WAS175M12BM3T 1200 V, 175 A, Silicon Carbide, Half-Bridge Module D Technical .

WAS175M12BM3T Features

* Industry Standard 62 mm Footprint
* High Humidity Operation THB-80 (HV-H3TRB)
* Ultra Low Loss, High-Frequency Operation
* Zero Reverse Recovery from Diodes
* Zero Turn-off Tail Current from MOSFET
* Normally-off, Fail-safe Device Operation

WAS175M12BM3T Applications

* Induction Heating
* Motor Drives
* Renewables
* Railway Auxiliary & Traction
* EV Fast Charging
* UPS and SMPS System Benefits 3
* 62 mm Form Factor Enables System Retrofit
* Increased System Efficiency, due to Low Switching & Cond

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: WAS175M12BM3T, WAS175M12BM3. Please refer to the document for exact specifications by model.

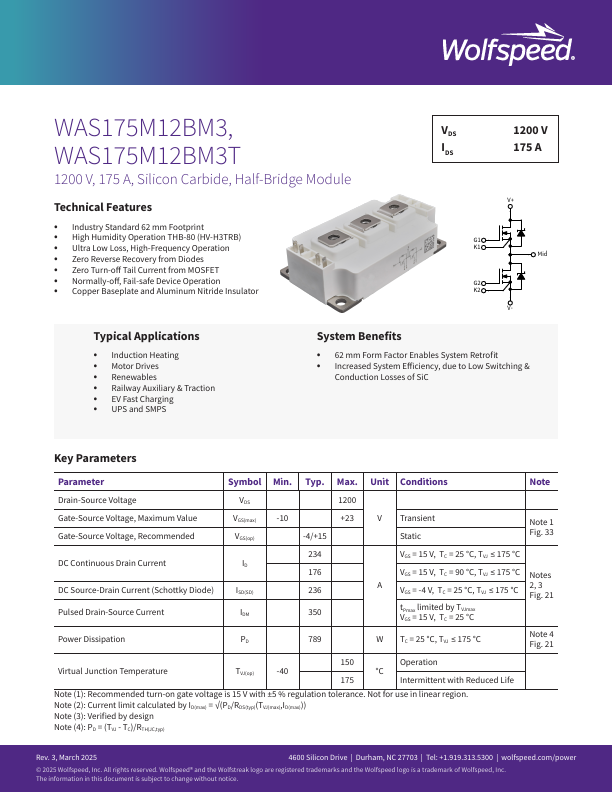

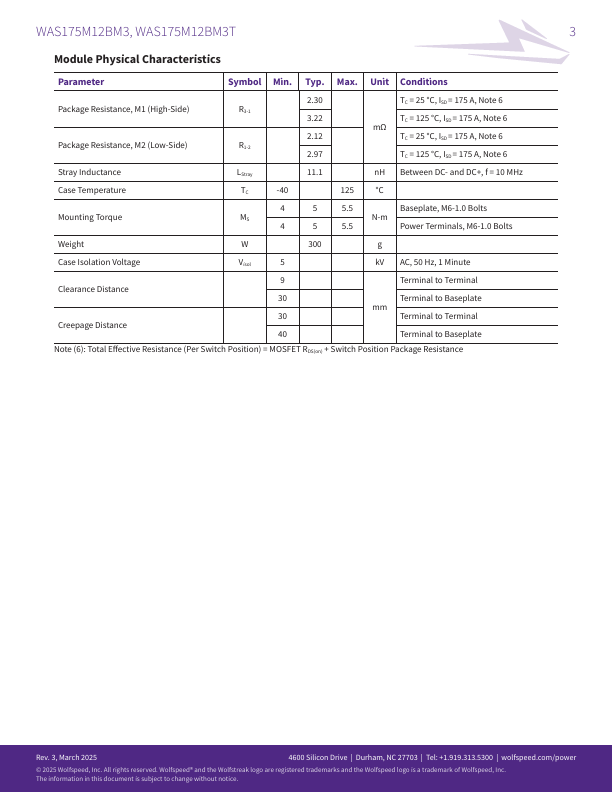

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
WAS175M12BM3T, WAS175M12BM3
Manufacturer
Wolfspeed
File Size
3.39 MB
Datasheet
WAS175M12BM3-Wolfspeed.pdf
Description
Silicon Carbide Half-Bridge Module
Note
This datasheet PDF includes multiple part numbers: WAS175M12BM3T, WAS175M12BM3.
Please refer to the document for exact specifications by model.
