HAS310M17BM3T - Half-Bridge Module

Download the HAS310M17BM3T datasheet PDF. This datasheet also covers the HAS310M17BM3 variant, as both devices belong to the same half-bridge module family and are provided as variant models within a single manufacturer datasheet.

Features

  • Industry Standard 62 mm Footprint.
  • Housing CTI ≥ 600 (Material Group I).
  • Compliant with EN45545-2 R22/23 HL3.
  • High Humidity Operation THB-80 (HV-H3TRB).
  • Low Inductance Design Optimized for SiC.
  • Ultra Low Loss, High-Frequency Operation.
  • Normally-off, Fail-safe Device Operation C.
  • Copper Baseplate and Aluminum Nitride Insulator VDS IDS4 1700 V 3 310 A 2 V+ G1 K1 Mid G2 K2 V- Typical.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (HAS310M17BM3-Wolfspeed.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Part Number Description Manufacturer
HAS300-P Current Transducer LEM
HAS300-S Current Transducer LEM
HAS-1201 ANALOG TO DIGITAL CONVERTER Analog Devices
HAS-1201KM ANALOG TO DIGITAL CONVERTER Analog Devices
HAS-1201MB ANALOG TO DIGITAL CONVERTER Analog Devices

Other Datasheets by Wolfspeed

Part Number Description
HAS310M17BM3 Half-Bridge Module
HAS350M12BM3 Half-Bridge Module
HAS175M12BM3 Half-Bridge Module
HAS530M12BM3 1200V 530A Half-Bridge Module
HAS530M12BM3T 1200V 530A Half-Bridge Module

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

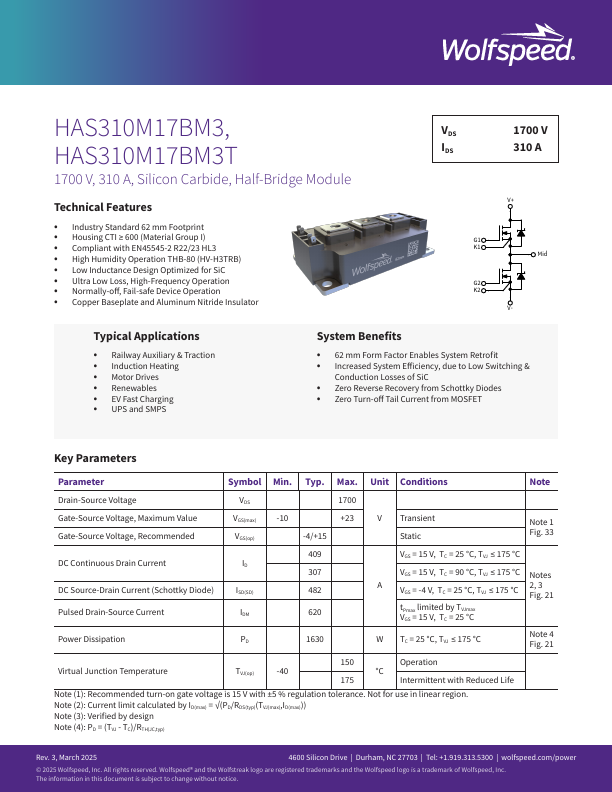

HAS310M17BM3, 5 HAS310M17BM3T 1700 V, 310 A, Silicon Carbide, Half-Bridge Module D Technical Features • Industry Standard 62 mm Footprint • Housing CTI ≥ 600 (Material Group I) • Compliant with EN45545-2 R22/23 HL3 • High Humidity Operation THB-80 (HV-H3TRB) • Low Inductance Design Optimized for SiC • Ultra Low Loss, High-Frequency Operation • Normally-off, Fail-safe Device Operation C • Copper Baseplate and Aluminum Nitride Insulator VDS IDS4 1700 V 3 310 A 2 V+ G1 K1 Mid G2 K2 V- Typical Applications • Railway Auxiliary & Traction • Induction Heating • Motor Drives • Renewables • EV Fast Charging • UPS and SMPS System Benefits 3 • 62 mm Form Factor Enables System Retrofit • Increased System Efficiency, due to Low Switching & Conduction Losses of SiC • Zero RBever
