CGH35060P2, CGH35060F2 - GaN HEMT

Wolfspeed

📥 Download Datasheet

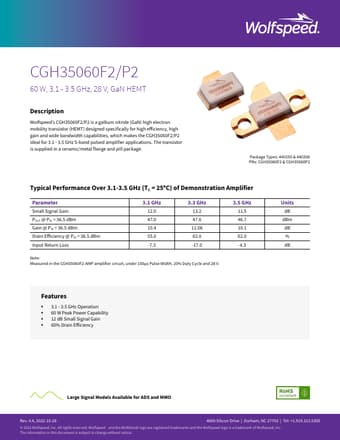

CGH35060P2 Datasheet Preview — This datasheet PDF includes multiple part numbers: CGH35060P2, CGH35060F2. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	CGH35060P2, CGH35060F2
Manufacturer	Wolfspeed
File Size	1.36 MB
Description	GaN HEMT
Datasheet	CGH35060F2-Wolfspeed.pdf
Note	This datasheet PDF includes multiple part numbers: CGH35060P2, CGH35060F2. Please refer to the document for exact specifications by model.

CGH35060P2 Product details

Description

Wolfspeed’s CGH35060F2/P2 is a gallium nitride (GaN) high electron mobility transistor (HEMT) designed specifically for high efficiency, high gain and wide bandwidth capabilities, which makes the CGH35060F2/P2 ideal for 3.1 - 3.5 GHz S-band pulsed amplifier applications.

Features

3.1 - 3.5 GHz Operation.
60 W Peak Power Capability.
12 dB Small Signal Gain.
60% Drain Efficiency Large Signal Models Available for ADS and MWO Rev. 4.4, 2022-10-28 4600 Silicon Drive | Durham, NC 27703 | Tel: +1.919.313.5300 © 2022 Wolfspeed, Inc. All rights reserved. Wolfspeed and the Wolfstreak logo are registered trademarks and the Wolfspeed logo is a trademark of Wolfspeed, Inc. The information in this document is subject to change without notice.
