CAS530M12BM3T - Half-Bridge Module

Product Overview

Wolfspeed

📥 Download Datasheet

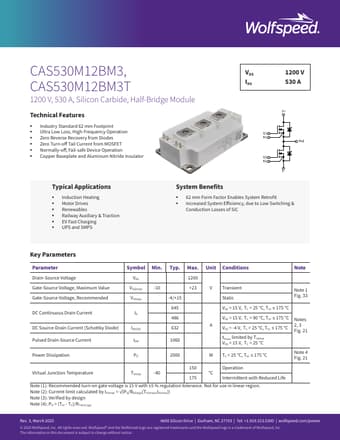

CAS530M12BM3T Half-Bridge Module by Wolfspeed - Datasheet Preview — Datasheet preview – CAS530M12BM3T

Datasheet Details

Part number	CAS530M12BM3T
Manufacturer	Wolfspeed
File Size	3.39 MB
Description	Half-Bridge Module
Datasheet	CAS530M12BM3T Datasheet
Note	This datasheet PDF includes multiple part numbers: CAS530M12BM3T, CAS530M12BM3. Please refer to the document for exact specifications by model.
Additional preview pages of the CAS530M12BM3T datasheet.

Product details

Features

Industry Standard 62 mm Footprint.
Ultra Low Loss, High-Frequency Operation.
Zero Reverse Recovery from Diodes.
Zero Turn-off Tail Current from MOSFET.
Normally-off, Fail-safe Device Operation.
Copper Baseplate and Aluminum Nitride Insulator C VDS IDS4 1200 V 3 530 A 2 V+ G1 K1 Mid G2 K2 V- Typical.
