CAB760M12HM3 - Silicon Carbide Half-Bridge Module

Product Overview

Wolfspeed

📥 Download Datasheet

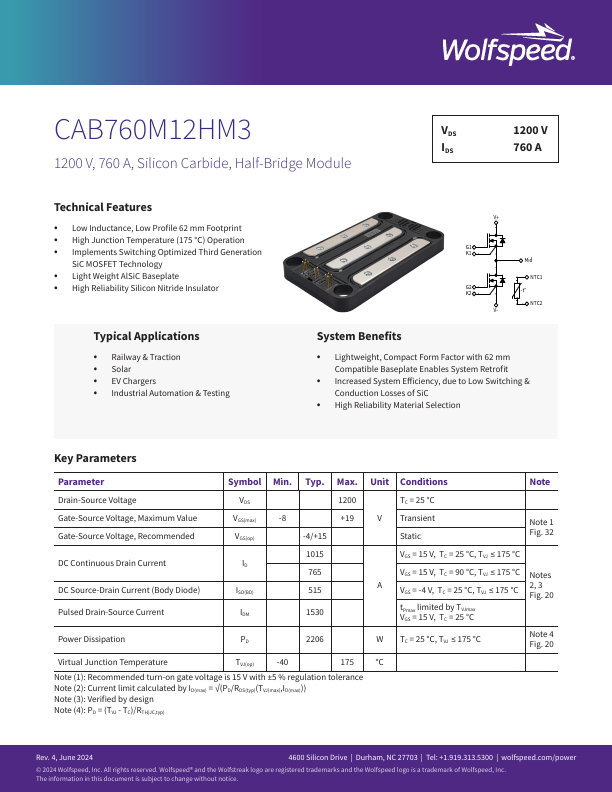

CAB760M12HM3 Silicon Carbide Half-Bridge Module by Wolfspeed - Datasheet Preview — Datasheet preview – CAB760M12HM3

Datasheet Details

Part number	CAB760M12HM3
Manufacturer	Wolfspeed
File Size	2.00 MB
Description	Silicon Carbide Half-Bridge Module
Datasheet	CAB760M12HM3 Datasheet

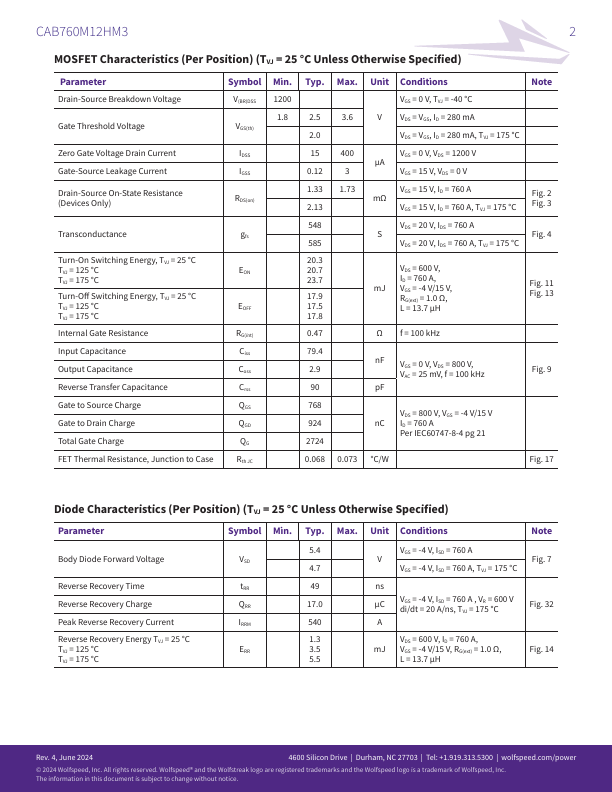

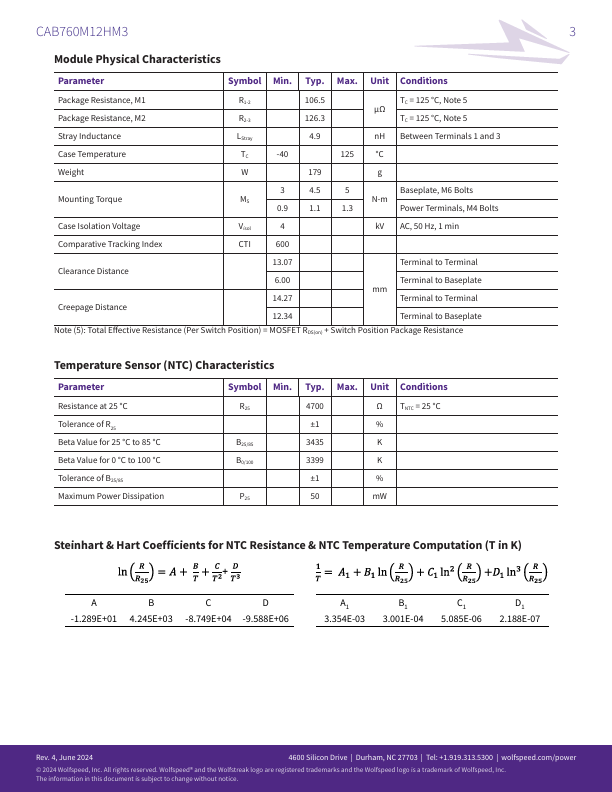

Additional preview pages of the CAB760M12HM3 datasheet.

Product details

Features

Low Inductance, Low Profile 62 mm Footprint.
High Junction Temperature (175 °C) Operation.
Implements Switching Optimized Third Generation SiC MOSFET Technology.
Light Weight AlSiC Baseplate.
High Reliability Silicon Nitride Insulator D V+ G1 K1 Mid NTC1 G2 K2 -t° C NTC2 V- Typical.
