CAB525F12XM3 - 1200V Silicon Carbide Half-Bridge Module

Product Overview

Wolfspeed

📥 Download Datasheet

CAB525F12XM3 1200V Silicon Carbide Half-Bridge Module by Wolfspeed - Datasheet Preview — Datasheet preview – CAB525F12XM3

Datasheet Details

Part number	CAB525F12XM3
Manufacturer	Wolfspeed
File Size	2.81 MB
Description	1200V Silicon Carbide Half-Bridge Module
Datasheet	CAB525F12XM3 Datasheet

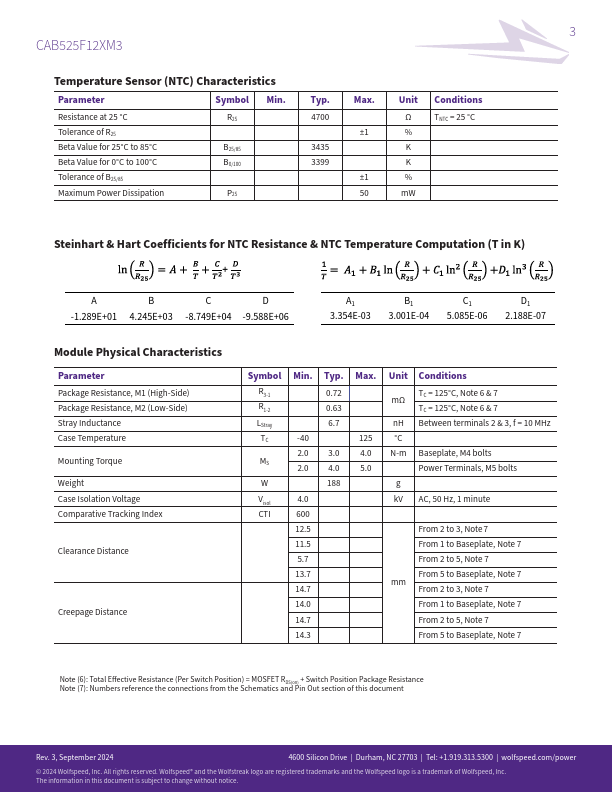

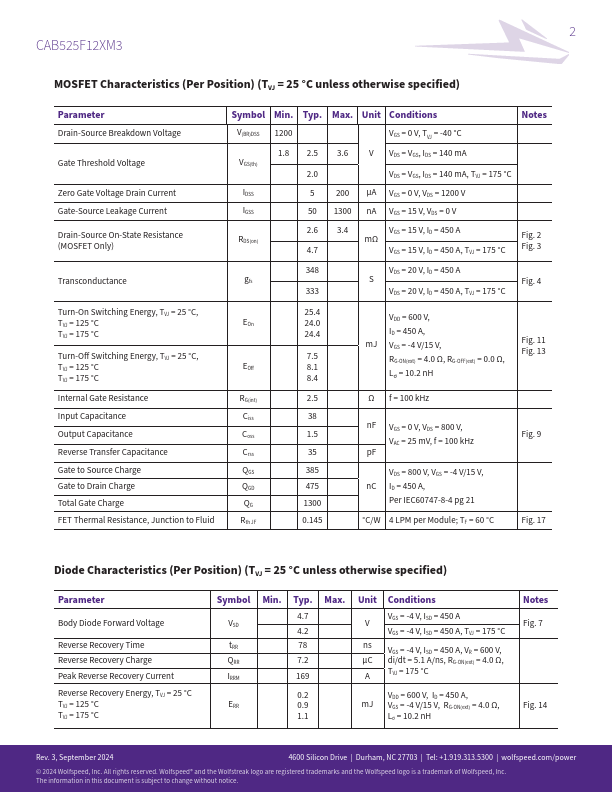

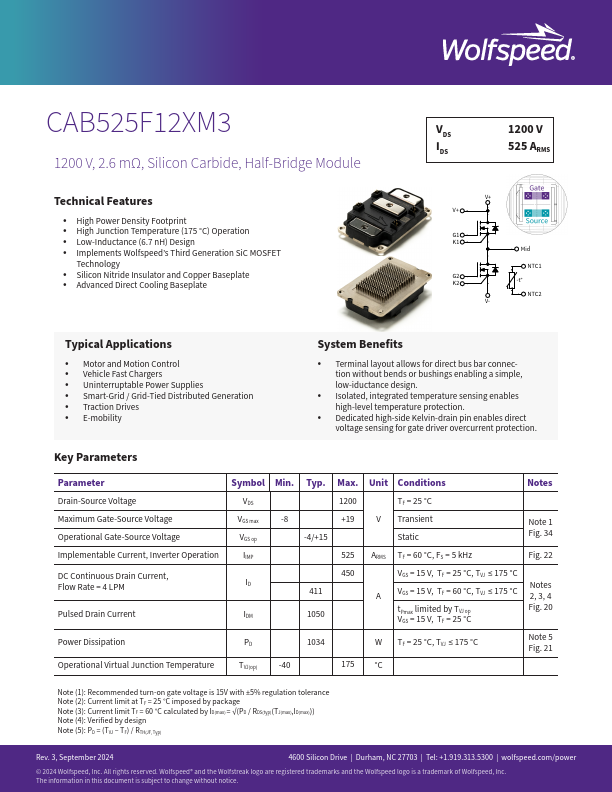

Additional preview pages of the CAB525F12XM3 datasheet.

Product details

Features

High Power Density Footprint.
High Junction Temperature (175 °C) Operation.
Low-Inductance (6.7 nH) Design.
Implements Wolfspeed’s Third Generation SiC MOSFET Technology.
Silicon Nitride Insulator and Copper Baseplate.
Advanced Direct Cooling Baseplate C VDS 1200 V 4 IDS 3 525 A2 RMS 1 V+ V+ G1 K1 Mid NTC1 G2 K2 -t° NTC2 V- Typical.
