WSR25N20 Datasheet - Winsok

WSR25N20 N-Ch MOSFET

The WSR25N20 is the highest performance trench N-Ch MOSFET with extreme high cell density,which provide excellent RDSON and gate charge for most of the synchronous buck converter applications . The WSR25N20 meet the RoHS and Green Product requirement , 100% EAS guaranteed with full function reliabil.

WSR25N20 Features

* z Advanced high cell density Trench technology z Super Low Gate Charge z Excellent Cdv/dt effect decline z Green Device Available Product Summery BVDSS 200V RDSON 60mΩ ID 25A Applications z High Frequency Point-of-Load Synchronous Buck Converter z Networking DC-DC Power System z Load Switch TO

WSR25N20-Winsok.pdf

Preview of WSR25N20 PDF

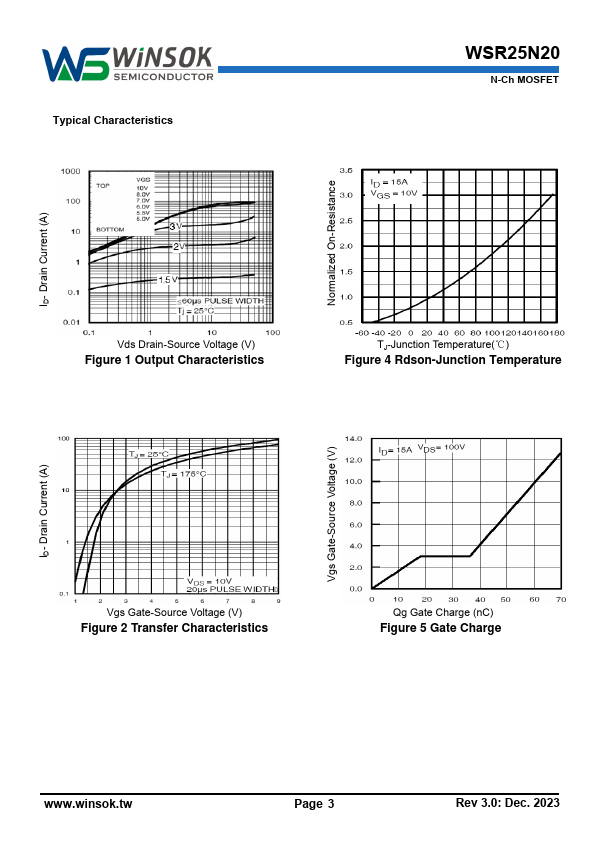

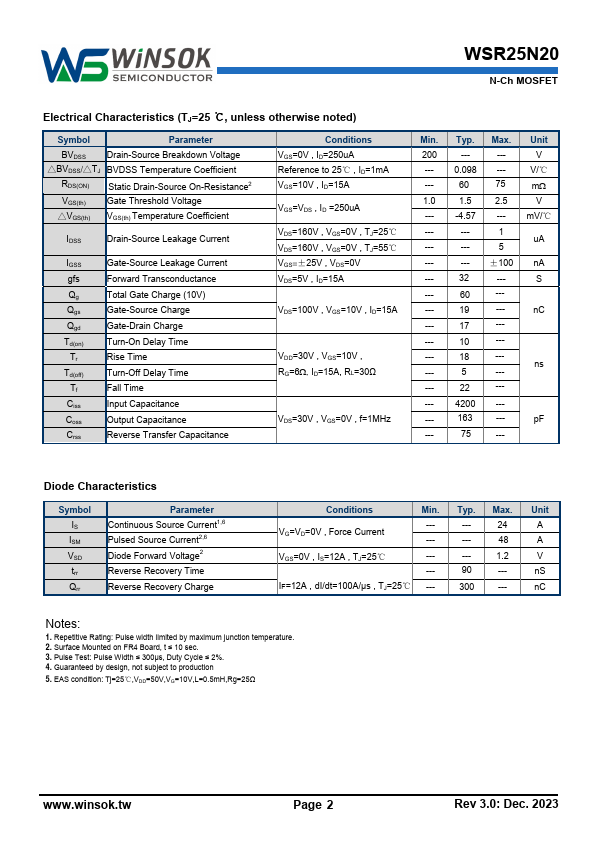

WSR25N20 Datasheet Preview Page 2 WSR25N20 Datasheet Preview Page 3

Datasheet Details

Part number:

WSR25N20

Manufacturer:

Winsok

File Size:

1.96 MB

Description:

N-ch mosfet.
