WSD86P10DN56 - P-Channel MOSFET

WSD86P10DN56 Description

General .
The WSD86P10DN56 is the highest performance trench P-Channel MOSFET with extreme high cell density, which provide excellent RDS(ON) and gate charge fo.

WSD86P10DN56 Features

* Advanced high cell density Trench technology
* Super Low Gate Charge
* Excellent CdV/dt effect decline
* 100% EAS Guaranteed

📥 Download Datasheet

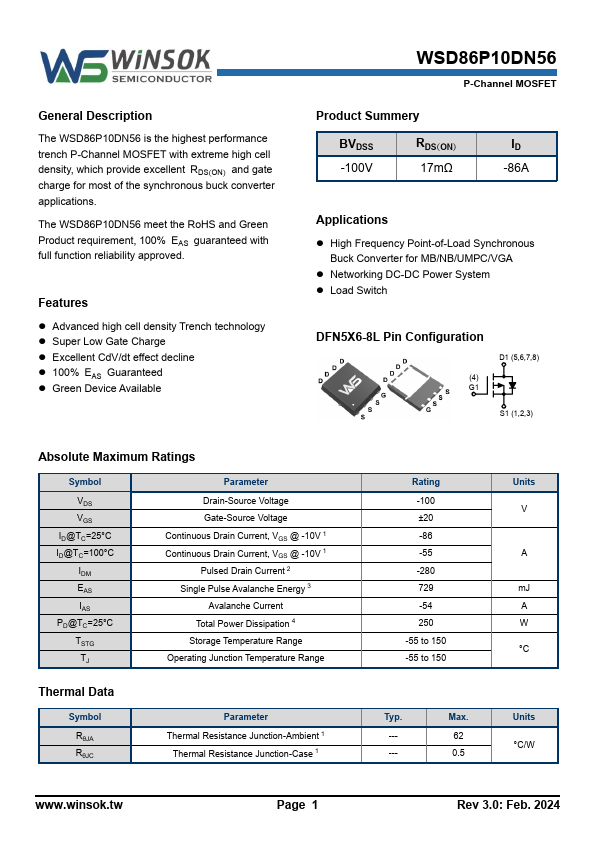

Preview of WSD86P10DN56 PDF

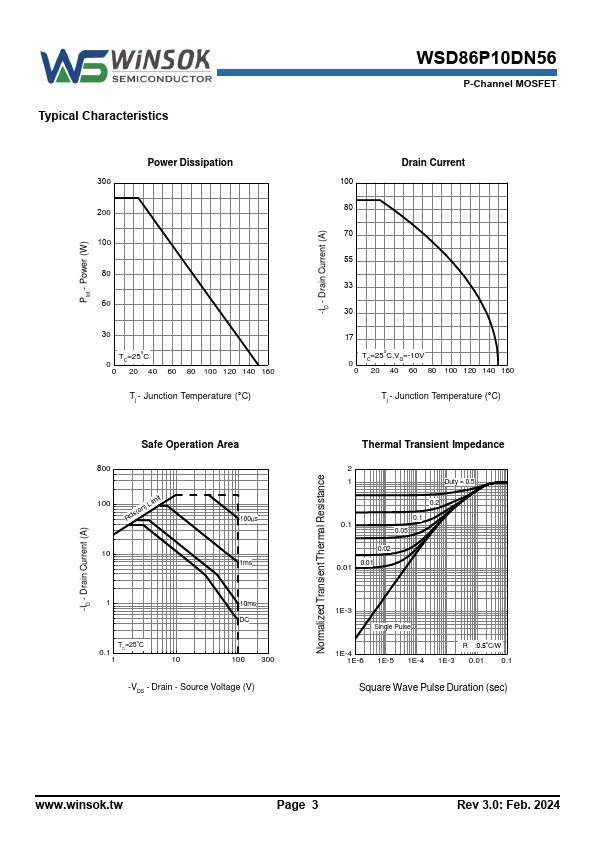

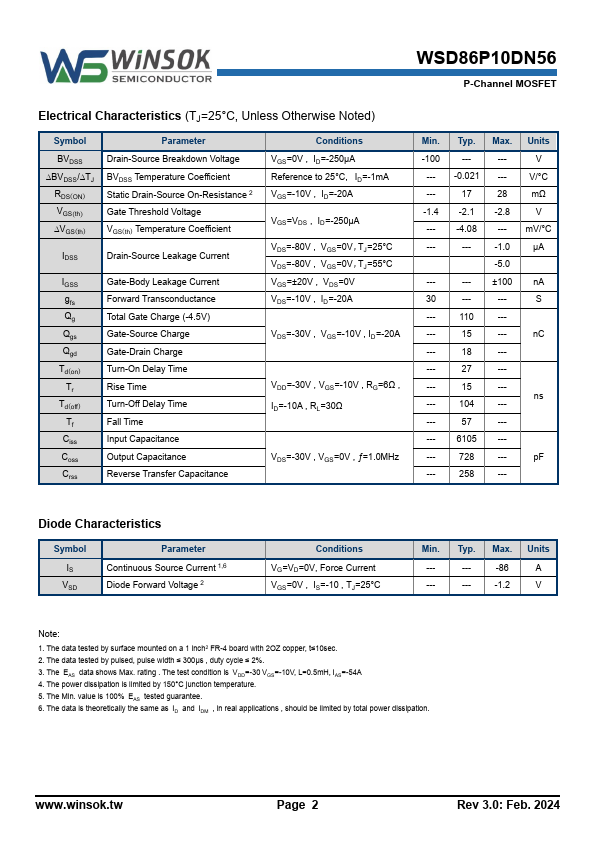

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
WSD86P10DN56
Manufacturer
Winsok
File Size
576.55 KB
Datasheet
WSD86P10DN56-Winsok.pdf
Description
P-Channel MOSFET
