WSD75N12GDN56 - N-Channel MOSFET

WSD75N12GDN56 Description

General .
The WSD75N12GDN56 uses Super Trench technology that is uniquely optimized to provide the most efficient high frequency switching performance.

WSD75N12GDN56 Features

* Excellent gate charge x RDS(ON) product(FOM)
* Very low on-resistance RDS(ON)
* 150°C operating temperature
* Pb-free lead plating

WSD75N12GDN56 Applications

* DC/DC Converter
* Load switch. DFN5X6-8L Pin Configuration D1 (5,6,7,8) (4) G1 S1 (1,2,3) Absolute Maximum Ratings Symbol VDS VGS ID IDM IAR EAS PD TSTG TJ TL Parameter Drain-Source Voltage Gate-Source Voltage Continuous Drain Current 1( TC=25°C) Continuous Drain Current 1( TC=70°C) Pul

📥 Download Datasheet

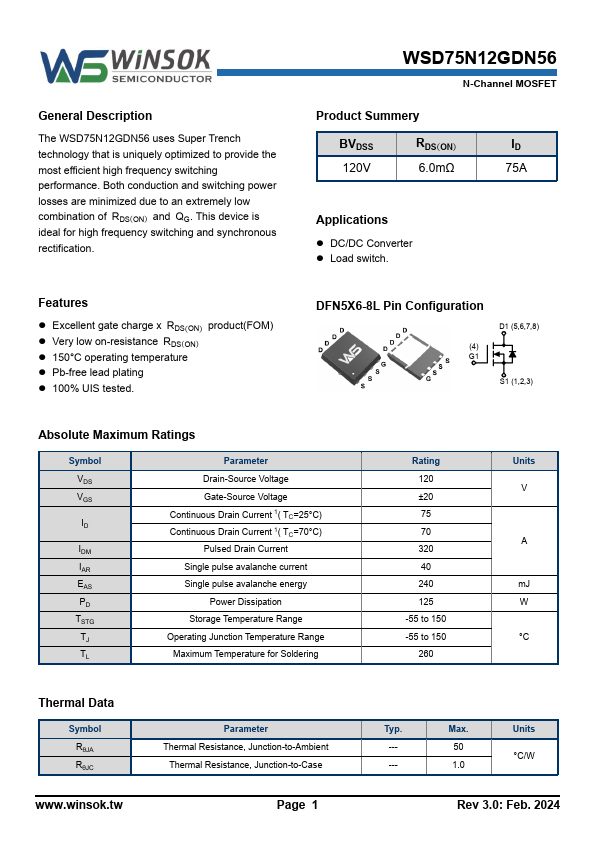

Preview of WSD75N12GDN56 PDF

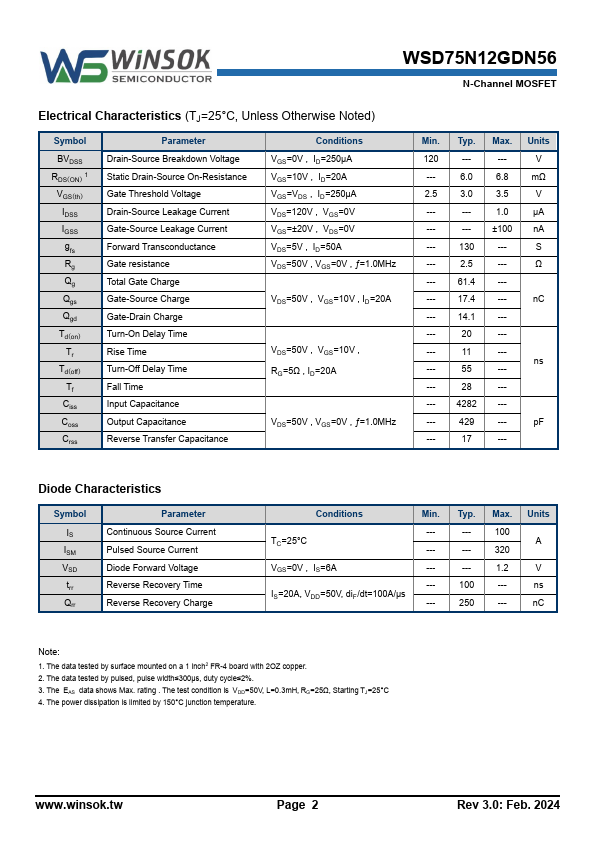

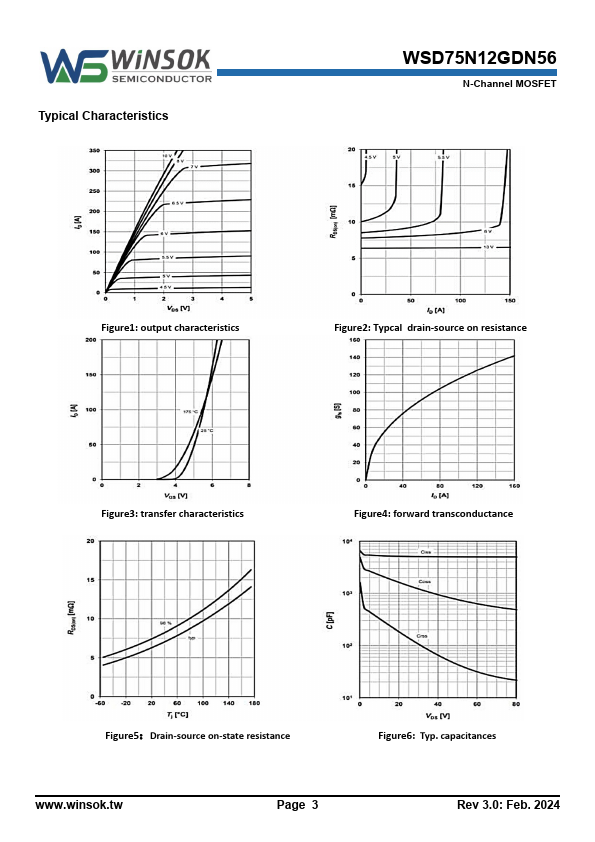

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
WSD75N12GDN56
Manufacturer
Winsok
File Size
1.22 MB
Datasheet
WSD75N12GDN56-Winsok.pdf
Description
N-Channel MOSFET
