WSC3085 - N-Ch MOSFET

Product Overview

Winsok

📥 Download Datasheet

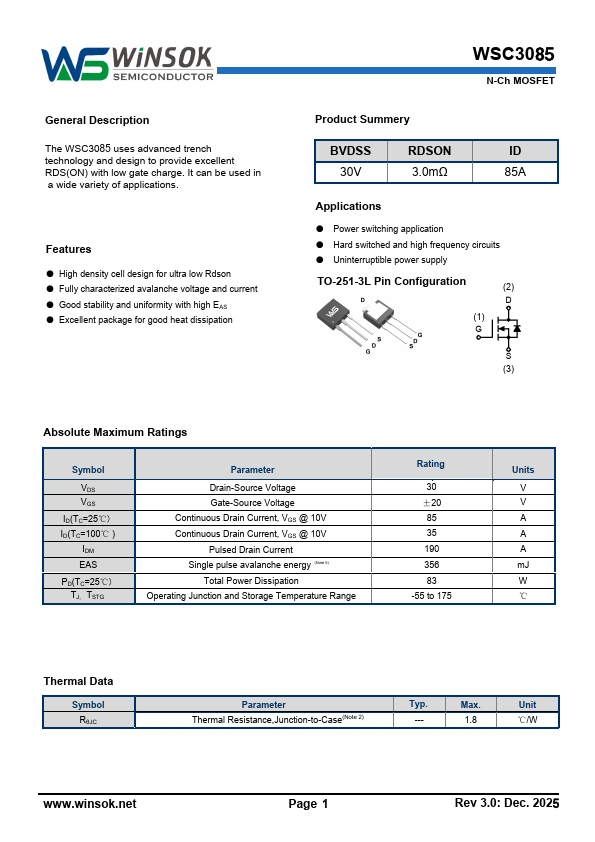

WSC3085 N-Ch MOSFET by Winsok - Datasheet Preview — Datasheet preview – WSC3085

Datasheet Details

Part number	WSC3085
Manufacturer	Winsok
File Size	2.06 MB
Description	N-Ch MOSFET
Datasheet	WSC3085 Datasheet

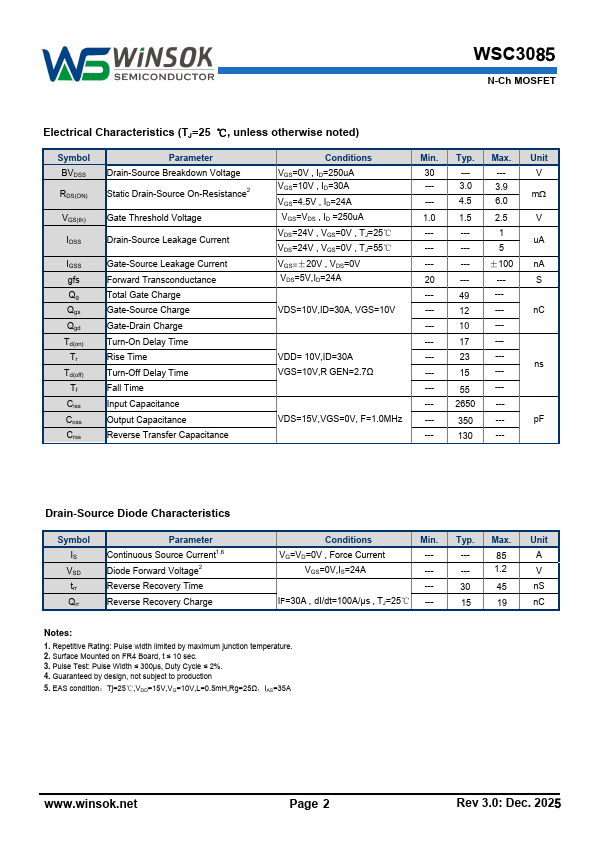

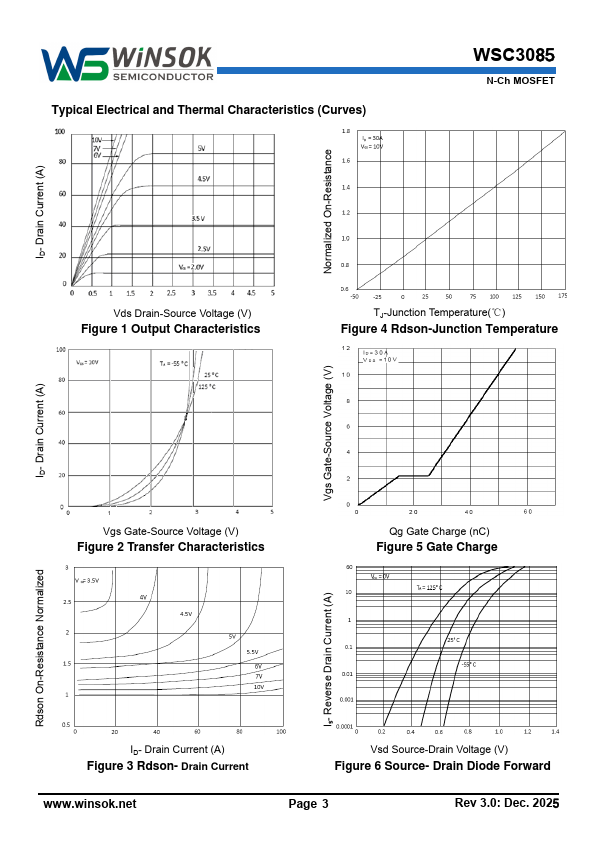

Additional preview pages of the WSC3085 datasheet.

Product details

Description

The WSC3085 uses advanced trench technology and design to provide excellent RDS(ON) with low gate charge.

Features

High density cell design for ultra low Rdson.
Fully characterized avalanche voltage and current.
Good stability and uniformity with high EAS.
Excellent package for good heat dissipation WSC3085 N-Ch MOSFET Product Summery BVDSS RDSON ID 30V 3.0mΩ 85A.
