WS7805K - L7800 SERIES REGULATORS

Product Overview

📥 Download Datasheet

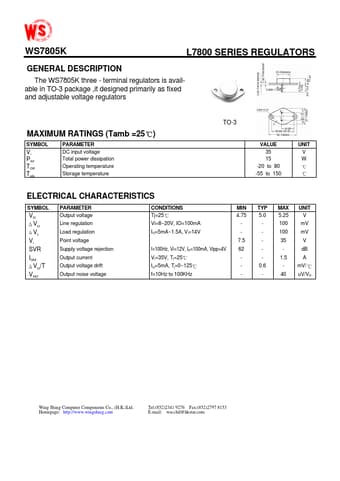

Datasheet preview – WS7805K

Datasheet Details

Part number WS7805K
Manufacturer Wing Shing Computer Components
File Size 187.54 KB
Description L7800 SERIES REGULATORS
Datasheet download datasheet WS7805K Datasheet
Additional preview pages of the WS7805K datasheet.

Product details

Description

The WS7805K three - terminal regulators is available in TO-3 package ,it designed primarily as fixed and adjustable voltage regulators L7800 SERIES REGULATORS TO-3 MAXIMUM RATINGS (Tamb =25 ) SYMBOL Vi Ptot TOP Tstg PARAMETER DC input voltage Total power dissipation Operating temperature Storage temperature VALUE 35 15 -20 to 80 -55 to 150 UNIT V W ELECTRICAL CHARACTERISTICS SYMBOL VO VO VL Vi SVR IOM VO/T VNO PARAMETER Output voltage Line regulation Load regulation Point voltage Suppl
