PFF7N80 - N-Channel MOSFET

📥 Download Datasheet

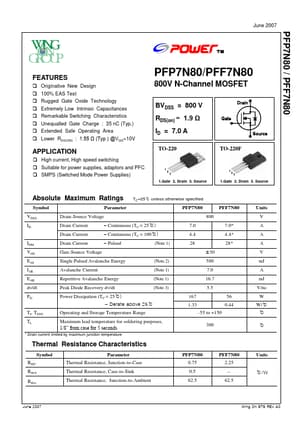

PFF7N80 Datasheet Preview — Preview of PFF7N80 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	PFF7N80
Manufacturer	Wing On
File Size	1.32 MB
Description	N-Channel MOSFET
Datasheet	PFF7N80-WingOn.pdf

PFF7N80 Product details

Features

 Originative New Design  100% EAS Test  Rugged Gate Oxide Technology  Extremely Low Intrinsic Capacitances  Remarkable Switching Characteristics  Unequalled Gate Charge : 35 nC (Typ. )  Extended Safe Operating Area  Lower RDS(ON) : 1.55 Ω (Typ. ) @VGS=10V.
