PFF4N70E - N-Channel MOSFET

📥 Download Datasheet

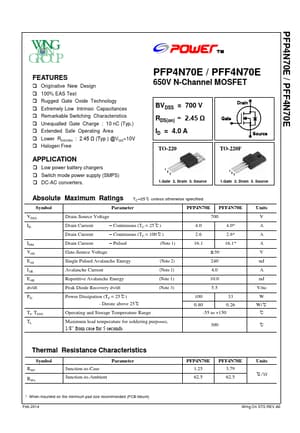

PFF4N70E Datasheet Preview — Preview of PFF4N70E PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	PFF4N70E
Manufacturer	Wing On
File Size	0.96 MB
Description	N-Channel MOSFET
Datasheet	PFF4N70E-WingOn.pdf

PFF4N70E Product details

Features

 Originative New Design  100% EAS Test  Rugged Gate Oxide Technology  Extremely Low Intrinsic Capacitances  Remarkable Switching Characteristics  Unequalled Gate Charge : 10 nC (Typ. )  Extended Safe Operating Area  Lower RDS(ON) : 2.45 Ω (Typ. ) @VGS=10V  Halogen Free.
