WPCN384U - Legacy-Reduced SuperI/O

Name: WPCN384U
SKU: WPCN384U-613018

Winbond

The WPCN384U by Winbond is a Legacy-Reduced SuperI/O. Below is the official datasheet preview.

Datasheet Details

Part number	WPCN384U
Manufacturer	Winbond
File Size	129.20 KB
Description	Legacy-Reduced SuperI/O
Datasheet	WPCN384U_Winbond.pdf

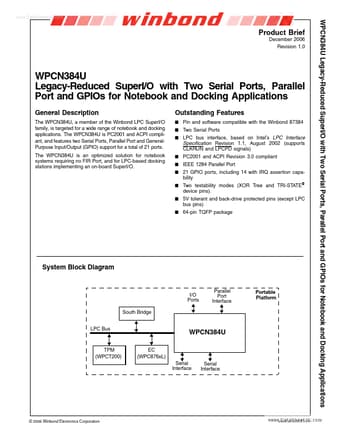

Additional preview pages of the WPCN384U datasheet.

The WPCN384U, a member of the Winbond LPC SuperI/O family, is targeted for a wide range of notebook and docking applications.

two Serial Ports, Parallel Port and GeneralPurpose Input/Output (GPIO) support for a total of 21 ports. The WPCN384U is an optimized solution for notebook systems requiring no FIR Port, and for LPC-based docking stations implementing an on-board SuperI/O. Outstanding Features.
Pin and software compatible with the Winbond 87384 Two Serial Ports LPC bus interface, based on Intel’s LPC Interface Specification Revision 1.1, August 2002 (supports CLKRUN and LPCPD signals) PC2001 an.
