W681360 - 3V SINGLE-CHANNEL 13-BIT LINEAR VOICE-BAND CODEC

W681360 Description

W681360 www.DataSheet4U.com 3V SINGLE-CHANNEL 13-BIT LINEAR VOICE-BAND CODEC Data Sheet -1- Publication Release Date: September 2005 Revision A.2 .
The W681360 is a general-purpose single channel 13. bit linear PCM CODEC with 2s complement data format.

W681360 Features

* Single +3V power supply (2.7V to 5.25V) Typical power dissipation: 9.8mW Standby power dissipation: 3µW Power-Down dissipation: 0.09µW Fully-differential analog circuit design for

W681360 Applications

* The W681360 accepts eight master clock rates between 256kHz and 4.800MHz, and an on-chip pre-scaler automatically determines the division ratio for the required internal clock. An additional on-chip power amplifier is capable of driving 300Ω loads differentially up to a level of 3.544V peak-to-peak

📥 Download Datasheet

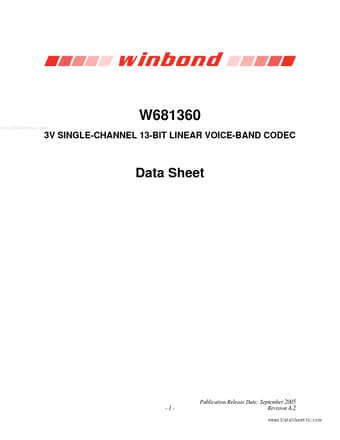

Preview of W681360 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
W681360
Manufacturer
Winbond
File Size
423.17 KB
Datasheet
W681360_Winbond.pdf
Description
3V SINGLE-CHANNEL 13-BIT LINEAR VOICE-BAND CODEC
