W29C020 - 256K x 8 CMOS FLASH MEMORY

General Description

The W29C020 is a 2-megabit, 5-volt only CMOS flash memory organized as 256K × 8 bits.

The device can be written (erased and programmed) in-system with a standard 5V power supply.

A 12-volt VPP is not required.

Key Features

  • Single 5-volt write (erase and program) operations.
  • Fast page-write operations.
  • 128 bytes per page.
  • Page write (erase/program) cycle: 10 mS (max. ).
  • Effective byte-write (erase/program) cycle time: 39 µS.
  • Optional software-protected data write.
  • Fast chip-erase operation: 50 mS.
  • Two 8 KB boot blocks with lockout.
  • Typical page write (erase/program) cycles: 100/1K/10K.
  • Read access time: 70/90/120 nS.

📥 Download Datasheet

Datasheet Details

Part number W29C020
Manufacturer Winbond
File Size 236.32 KB
Description 256K x 8 CMOS FLASH MEMORY
Datasheet download datasheet W29C020 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
W2911 (W29xx) Oscillator MF Electronics
W2912 (W29xx) Oscillator MF Electronics
W2913 (W29xx) Oscillator MF Electronics
W2958NC280 Rectifier Diode IXYS
W2958NC300 Rectifier Diode IXYS

Other Datasheets by Winbond

Part Number Description
W29C020C 256K x 8 CMOS FLASH MEMORY
W29C010 128K X 8 CMOS FLASH MEMORY
W29C011A 128K x 8 CMOS FLASH MEMORY
W29C040 512K X 8 CMOS FLASH MEMORY
W29C102 64K 16 CMOS FLASH MEMORY

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

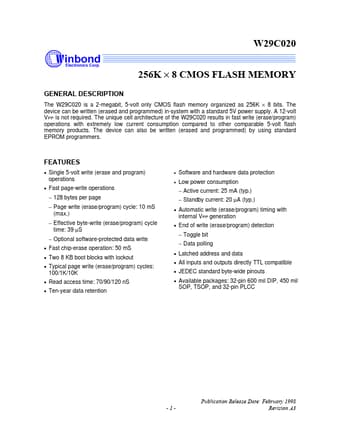

W29C020 256K × 8 CMOS FLASH MEMORY GENERAL DESCRIPTION The W29C020 is a 2-megabit, 5-volt only CMOS flash memory organized as 256K × 8 bits. The device can be written (erased and programmed) in-system with a standard 5V power supply. A 12-volt VPP is not required. The unique cell architecture of the W29C020 results in fast write (erase/program) operations with extremely low current consumption compared to other comparable 5-volt flash memory products. The device can also be written (erased and programmed) by using standard EPROM programmers. FEATURES • Single 5-volt write (erase and program) operations • Fast page-write operations − 128 bytes per page − Page write (erase/program) cycle: 10 mS (max.
