W24L11 - 128K x 8 High Speed CMOS Static RAM

General Description

The W24L11 is a normal-speed, very low-power CMOS static RAM organized as 131072 × 8 bits that operates on a wide voltage range from 3.0V to 3.6V power supply.

Winbond's high performance CMOS technology.

Key Features

  • Low power consumption:.
  • Active: 144 mW (max. ).
  • Access time: 70 nS.
  • Single 3.3V power supply.
  • Fully static operation.
  • All inputs and outputs directly TTL compatible.
  • Three-state outputs.
  • Battery back-up operation capability.
  • Data retention voltage: 2V (min. ).
  • Packaged in 600 mil DIP, 450 mil SOP, standard type one, TSOP (8 mm × 20 mm) , small type one and TSOP (8 mm × 13.4 mm) PIN.

📥 Download Datasheet

Datasheet Details

Part number W24L11
Manufacturer Winbond
File Size 166.20 KB
Description 128K x 8 High Speed CMOS Static RAM
Datasheet download datasheet W24L11 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
W241 Dual N-Channel 40V MOSFET VBsemi
W2416 2K x 8 CMOS SRAM Winbond Electronics
W2416NC200 GENERAL PURPOSE HIGH POWER STANDARD RECTIFIER PST
W245 Dual N-Channel 30V MOSFET VBsemi
W245A n-channel JFET Siliconix

Other Datasheets by Winbond

Part Number Description
W24L01 128K x 8 CMOS STATIC RAM
W24L010A 128K x 8 High Speed CMOS Static RAM
W24L011A 128K x 8 High Speed CMOS Static RAM
W24L257A 32K x 8 HIGH-SPEED CMOS STATIC RAM
W24100 128K x 8 CMOS STATIC RAM

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

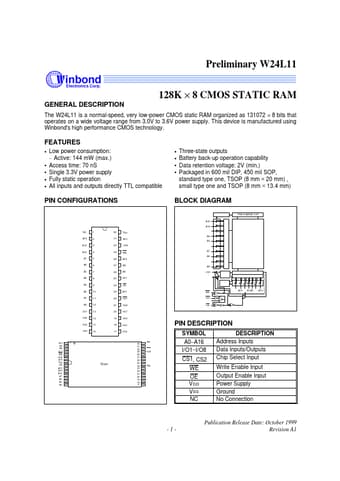

Preliminary W24L11 GENERAL DESCRIPTION 128K × 8 CMOS STATIC RAM The W24L11 is a normal-speed, very low-power CMOS static RAM organized as 131072 × 8 bits that operates on a wide voltage range from 3.0V to 3.6V power supply. This device is manufactured using Winbond's high performance CMOS technology. FEATURES • Low power consumption: − Active: 144 mW (max.) • Access time: 70 nS • Single 3.3V power supply • Fully static operation • All inputs and outputs directly TTL compatible • Three-state outputs • Battery back-up operation capability • Data retention voltage: 2V (min.) • Packaged in 600 mil DIP, 450 mil SOP, standard type one, TSOP (8 mm × 20 mm) , small type one and TSOP (8 mm × 13.
