WSB5512M - Schottky Barrier Diode

WillSEMI

📥 Download Datasheet

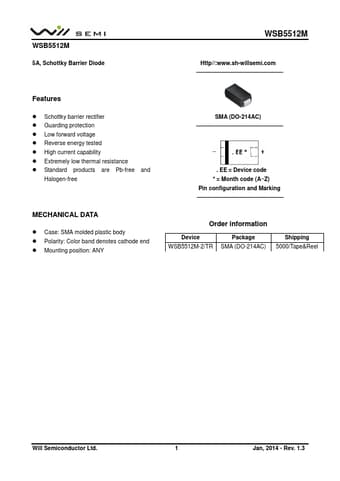

WSB5512M Datasheet Preview — Preview of WSB5512M PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	WSB5512M
Manufacturer	WillSEMI
File Size	298.08 KB
Description	Schottky Barrier Diode
Datasheet	WSB5512M-WillSEMI.pdf

WSB5512M Product details

Features

Schottky barrier rectifier.
Guarding protection.
Low forward voltage.
Reverse energy tested.
High current capability.
Extremely low thermal resistance.
Standard products are Pb-free and Halogen-free SMA (DO-214AC) . EE = Device code.
= Month code (A~Z) Pin configuration and Marking.
