ESD5301N - Small Power TVS

Description

The ESD5301N is an ultra-low capacitance TVS (Transient Voltage Suppressor) designed to protect high speed data interfaces.

Features

  • Stand-off voltage: 5V max.
  • Transient protection for each line according to IEC61000-4-2.

📥 Download Datasheet

Datasheet Details

Part number ESD5301N
Manufacturer WillSEMI
File Size 227.16 KB
Description Small Power TVS
Datasheet download datasheet ESD5301N Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
ESD5304D-MS TVS MSKSEMI
ESD5311N-2 TVS Diode Leiditech
ESD5311X TVS Diode Leiditech
ESD5371 ESD Protection Diode ON Semiconductor
ESD5381 ESD Protection Diodes ON Semiconductor

Other Datasheets by WillSEMI

Part Number Description
ESD5302F Small Power TVS
ESD5302N Small Power TVS
ESD5304D Small Power TVS
ESD5305F Small Power TVS
ESD5305FB Small Power TVS

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

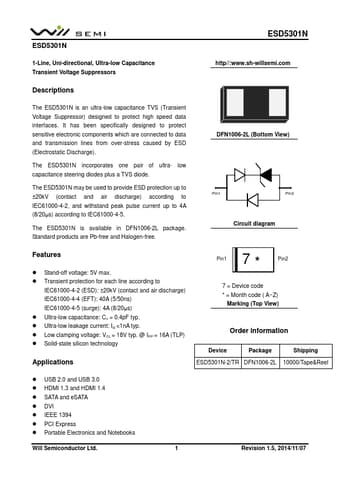

ESD5301N ESD5301N 1-Line, Uni-directional, Ultra-low Capacitance Transient Voltage Suppressors http//:www.sh-willsemi.com Descriptions The ESD5301N is an ultra-low capacitance TVS (Transient Voltage Suppressor) designed to protect high speed data interfaces. It has been specifically designed to protect sensitive electronic components which are connected to data and transmission lines from over-stress caused by ESD (Electrostatic Discharge). The ESD5301N incorporates one pair of ultra- low capacitance steering diodes plus a TVS diode. The ESD5301N may be used to provide ESD protection up to ±20kV (contact and air discharge) according to IEC61000-4-2, and withstand peak pulse current up to 4A (8/20μs) according to IEC61000-4-5. The ESD5301N is available in DFN1006-2L package.
