EDI2AG272129V - 2 Megabyte Sync/Sync Burst

EDI2AG272129V Description

www.DataSheet4U.com White Electronic Designs EDI2AG272129V ADVANCED * 2 Megabyte Sync/Sync Burst, Small Outline DIMM .
The EDI2AG272129VxxD1 is a Synchronous/ Synchronous Burst SRAM, 72 position SO DIMM (144 contacts) Module, organized as 2x128Kx72.

EDI2AG272129V Features

* 2x128Kx72 Synchronous, Synchronous Burst Flow-Through Architecture Sequential Burst MODE Clock Controlled Registered Bank Enables (E1#, E2#) Clock Controlled Byte Write Mode Enable (BWE#) Clock Controlled Byte Write Enables (BW1# - BW8#) Clock Controlled Registered Address Clock Controlled Registere

📥 Download Datasheet

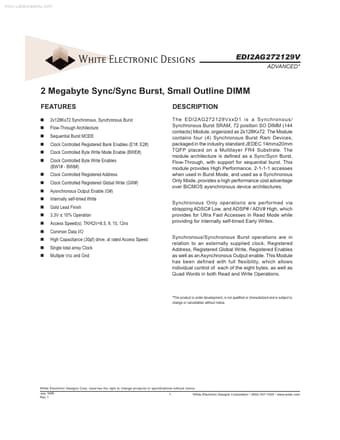

Preview of EDI2AG272129V PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
EDI2AG272129V
Manufacturer
White Electronic
File Size
188.40 KB
Datasheet
EDI2AG272129V_WhiteElectronic.pdf
Description
2 Megabyte Sync/Sync Burst
