Datasheet Details
| Part number | WV3HG264M64EEU-D6 |
|---|---|
| Manufacturer | White Electronic Designs |
| File Size | 223.49 KB |
| Description | 1GB - 2x64Mx64 DDR2 SDRAM UNBUFFERED |
| Datasheet |

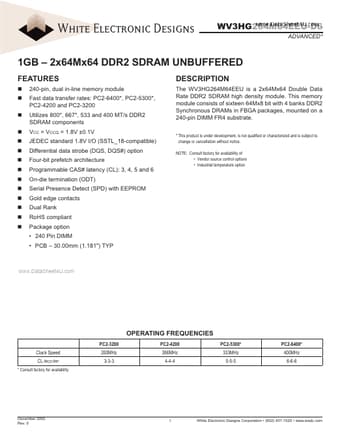

 WV3HG264M64EEU-D6 Datasheet
|
|
|
Description
The WV3HG264M64EEU is a 2x64Mx64 Double Data Rate DDR2 SDRAM high density module.
This memory module consists of sixteen 64Mx8 bit with 4 banks DDR2 Synchronous DRAMs in FBGA packages, mounted on a 240-pin DIMM FR4 substrate.
This product is under development, is not qualified or characterizedFeatures
- 240-pin, dual in-line memory module Fast data transfer rates: PC2-6400.
- , PC2-5300.
- , PC2-4200 and PC2-3200 Utilizes 800.
- , 667.
- , 533 and 400 MT/s DDR2 SDRAM components VCC = VCCQ = 1.8V ±0.1V JEDEC standard 1.8V I/O (SSTL_18-compatible) Differential data strobe (DQS, DQS#) option Four-bit prefetch architecture Programmable CAS# latency (CL): 3, 4, 5 and 6 On-die termination (ODT) Serial Presence Detect (SPD) with EEPROM Gold edge contacts Dual Rank RoHS compliant Package option.
